Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

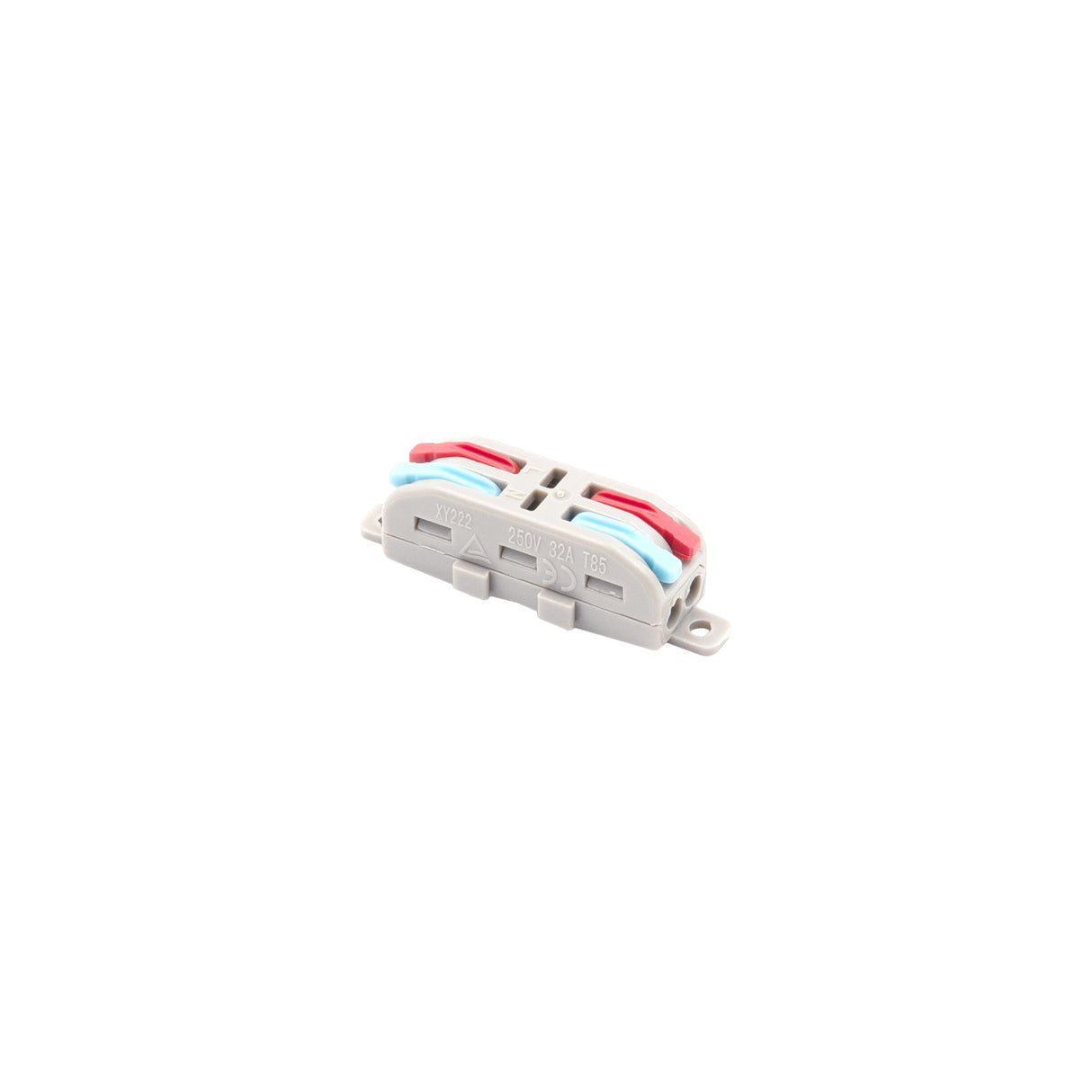

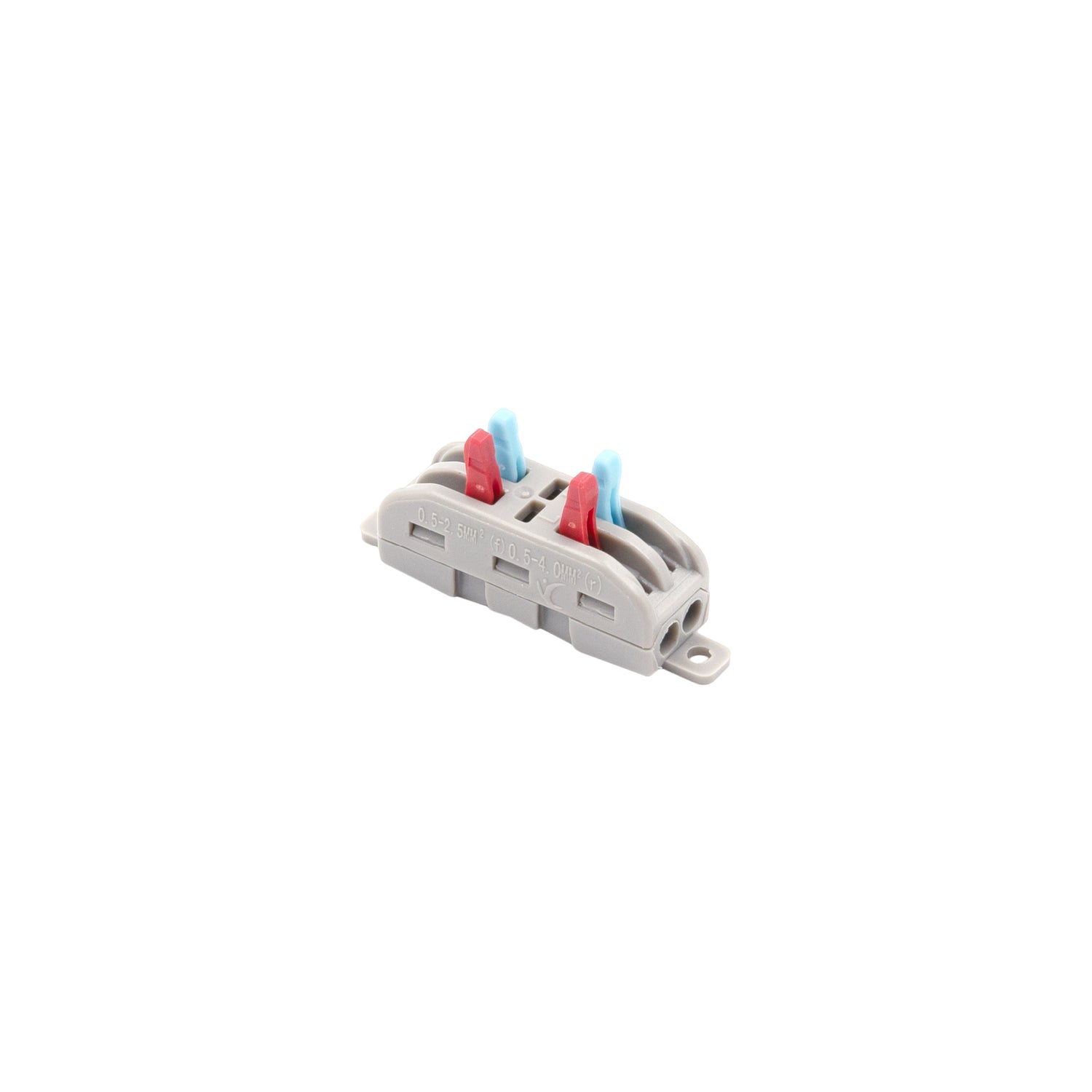

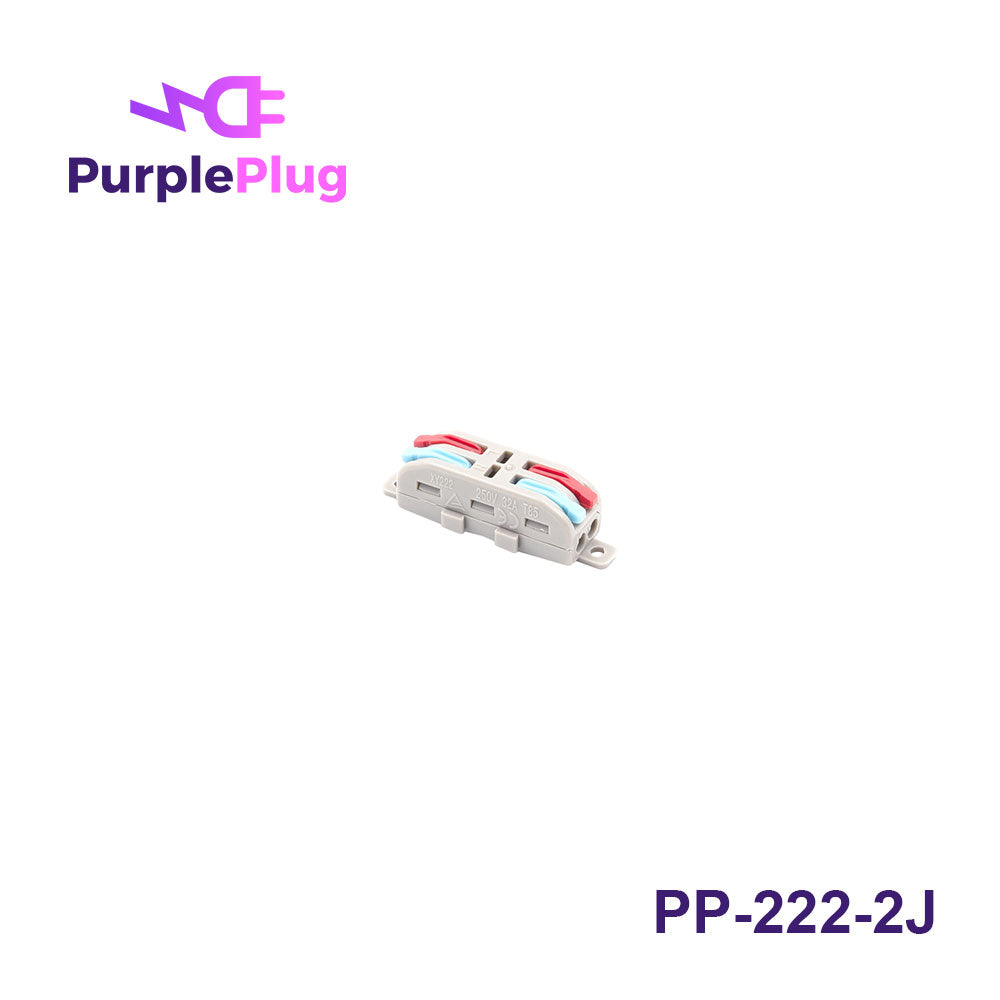

Purple Plug 222 Compact Splicing Connector, 2 Port 2 Way, with Lever

Name: Purple Plug 222 Compact Splicing Connector, 2 Port 2 Way, with Lever
Brand: Purple Plug
SKU: PP-222-2J
Price: 0.18 USD
Availability: InStock

PA66 and Copper, 20-12AWG

SKU:

PP-222-2J

$0.18 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Key Specifications

Rated Current

32 Ampere
Warranty

5 Year
Dimensions

x x 0.57 in

Description

PurplePlug's 2 Port 2 Way connector, crafted for seamless multi-wire junctions. With a robust PA66 housing and easy installation levers, secure wire connections are guaranteed.

Easy Installation and Durable Connections

Experience unmatched ease with PurplePlug's lever design, tailored for seamless navigation in even the most confined spaces. Bid farewell to tedious installations and messy removals, saving you time and effort with the ability to connect wires within seconds. By replacing traditional electrical tape and twist-type connectors, our lever-nut design slashes wiring time by up to 70%, delivering cleaner, more space-efficient connections.

Premium Material and Safety Assurance

Our connectors feature a flame-retardant PA66 shell, delivering exceptional electrical insulation with a UL94V-2 fire rating. Crafted from insulated materials, they boast corrosion resistance, age resistance, and high-pressure resistance, ensuring long-term reliability and preventing electrical leakage. Each junction is equipped with independent shrapnel, enhancing safety and product quality by managing different wires separately.

Versatile Compatibility

PurplePlug connectors are engineered to endure high loads, making them suitable for a myriad of applications. From household wiring to professional installations, including lighting fixtures and electrical equipment, our connectors excel in both everyday and professional settings. Additionally, they are ideal for DIY projects, offering reliability and ease of use across various applications.

Technical Specifications

Applicable Wire: 20-12 AWG
Europe Standard: 250V 32A; 0.5-2.5mm² (f), 0.5-4.0mm² (r)
USA Standard: 600V 20A; 20-12AWG str/sol
China Standard: 450V 32A; 0.5-2.5mm² (f), 0.5-4.0mm² (r)
Shell Material: PA66
Clamping Material: Copper
Temperature Rating: -40°F to +185°F (-40°C to +85°C)
Color: Red and Blue
UL Listed

File Downloads

::specification::

Specifications

Brand

Purple Plug
Series

Purple Plug Accessory
Rated Current

32 Ampere
Warranty

5 Year
Height

0.57 in
