Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

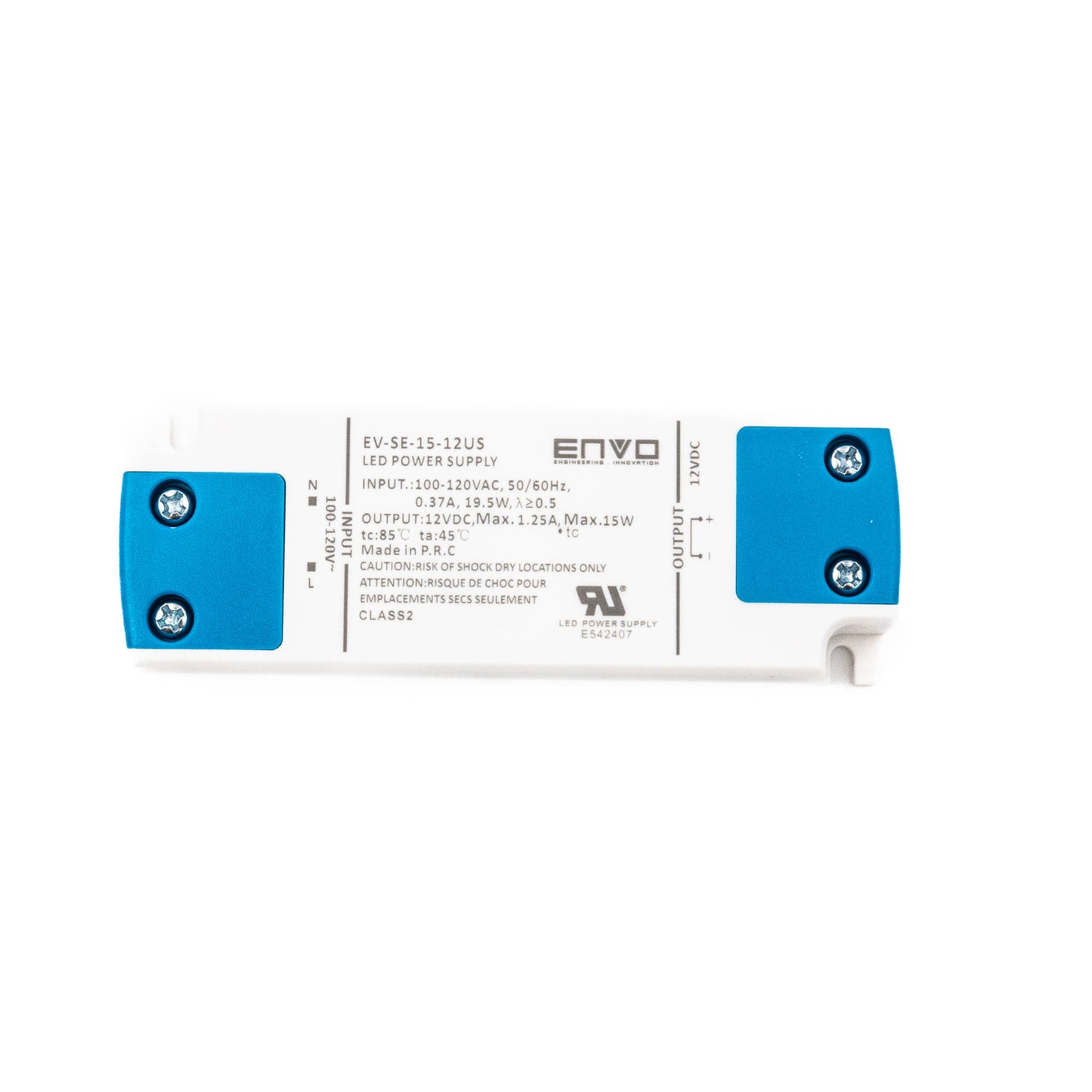

ENVO EV-SE-15-12US LED Driver 15W 12V
90~132VAC US input, ultra thin 0.63"(16mm)
SKU:
EV-SE-15-12US
ENVO EV-SE-15-12US LED Driver 15W 12V is backordered and will ship as soon as it is back in stock.
$4.28 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Couldn't load pickup availability
ENVO EV-SE-15-12US LED Driver 15W 12V
$4.28 USD
Unit price /
Unavailable
Key Specifications
Key Specifications
-
Voltage12 Volt
-
Rated Current1.25 Ampere
-
Dimming ControlNon Dimmable
-
WaterproofIP20
-
Dimensions4.06 in x 0.63 in x 1.4 in
Description
Description
- Output constant voltage
- Input voltage range is 90-132Vac
- Maximum conversion efficiency of 86%
- Working Temperature at -20℃~+45°C
- Short circuit/overload / over voltage protection
- Low standby power consumption
- Compliance with worldwide safety regulations for lighting
- Full protection plastic case
- IP20 for indoor installation
- 5 years warranty
File Downloads
File Downloads
::specification::
Specifications
Specifications
-
BrandEnvo
-
SeriesENVO SE Series
-
Power Rating15 Watt
-
Output Voltage12 Volt
-
Rated Current1.25 Ampere
-
Input Voltage90V~132V
-
Standards MetcUL,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~45°C
-
Warranty5 Year
-
Length4.06 in
-
Width0.63 in
-
Height1.4 in
-
Weight0.11 lb
