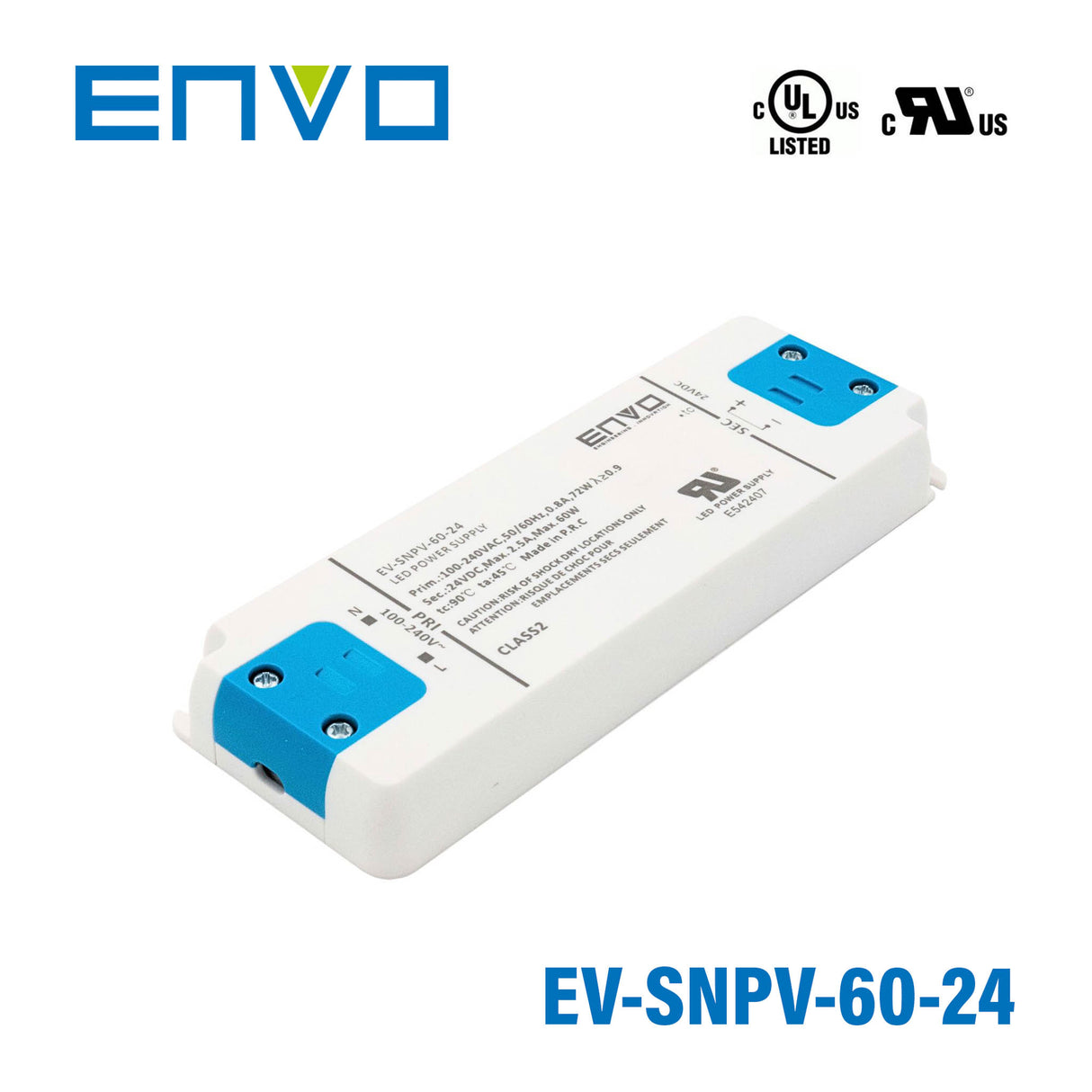

ENVO EV-SNPV-60-24 LED Driver 60W 24V
90~264VAC universal input, ultra thin 0.71"(18mm), PF 0.9
SKU:
EV-SNPV-60-24
ENVO EV-SNPV-60-24 LED Driver 60W 24V is backordered and will ship as soon as it is back in stock.
$15.46 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Couldn't load pickup availability
ENVO EV-SNPV-60-24 LED Driver 60W 24V
$15.46 USD
Unit price /
Unavailable
Key Specifications
Key Specifications
-
Voltage24 Volt
-
Rated Current2.5 Ampere
-
Dimming ControlNon Dimmable
-
WaterproofIP20
-
Dimensions6.3 in x 0.71 in x 2.28 in
Description
Description
- Output constant voltage
- Range: 100-240Vac
- Efficiency up to 87%
- Protection:Open circuit/Over load/Short circuit/Over temperature/Over voltage/Auto recovery/Latch off
- SELV Open circuit
- IP20 for indoor installation
- Flat and slim design
- Helpful for funiture or cabinet lighting application
- Class2 standard of electric shock protection
- 5 years warranty
File Downloads
File Downloads
::specification::
Specifications
Specifications
-
BrandEnvo
-
SeriesENVO SNPV Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage100V~240V
-
Standards MetCE,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~45°C
-
Warranty5 Year
-
Length6.3 in
-
Width0.71 in
-
Height2.28 in
