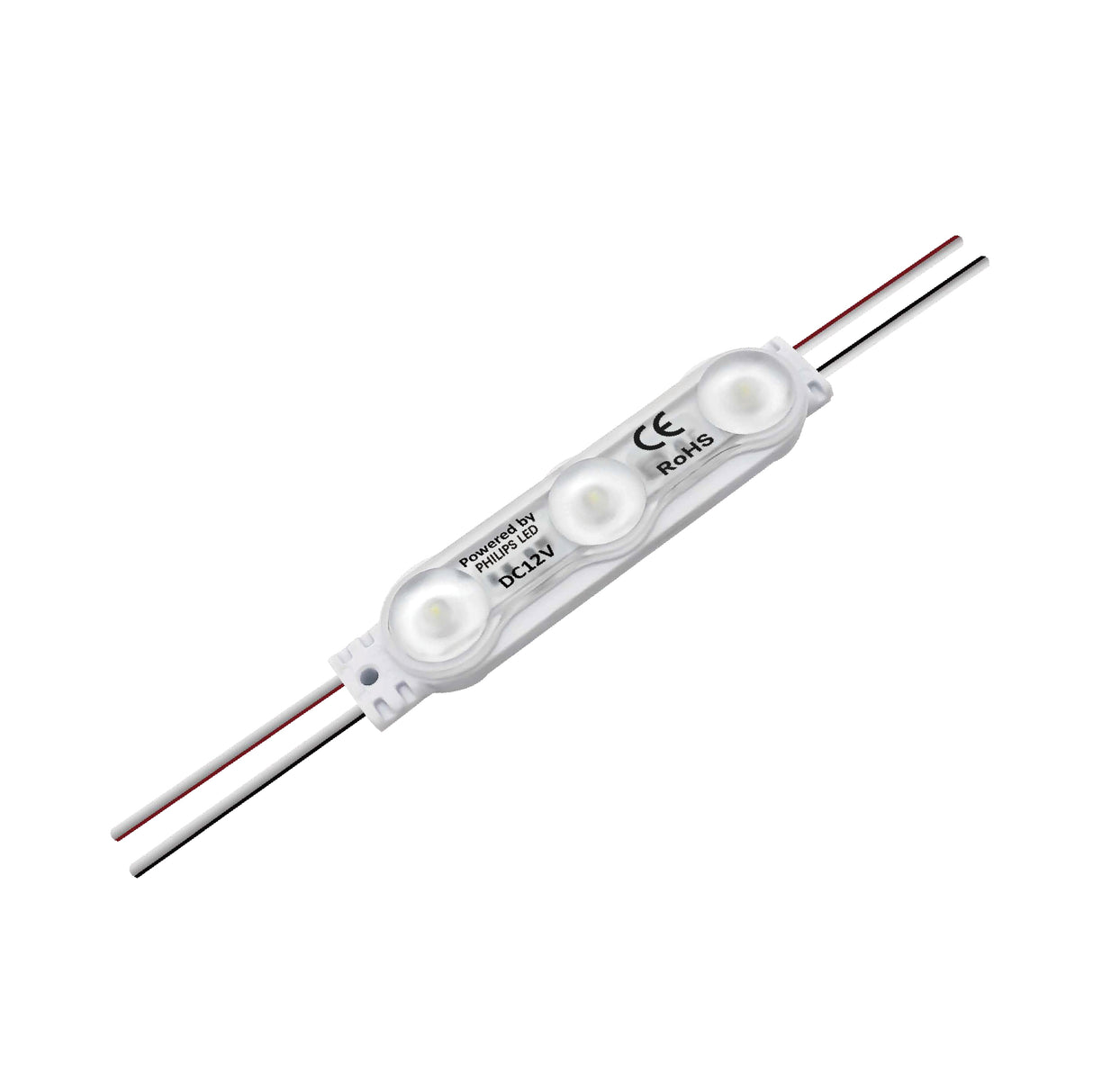

ENVO ProGlo LED Module Backlit - Triple LED

Name: ENVO ProGlo LED Module Backlit - Triple LED
Brand: Envo
SKU: EV-BLPG03LBY-CW
Price: 1.47 USD
Availability: InStock

12V 1.08W IP66 - Philips LED

SKU:

EV-BLPG03LBY-CW

LED Colour

Cool White 6500K Natural White 4000K Warm White 3000K

Product variants

ENVO ProGlo LED Module Backlit - Triple LED - Cool White 6500K is backordered and will ship as soon as it is back in stock.

$1.47 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Key Specifications

Power Rating

1.08 Watt
Input Voltage

12V DC
Max Series

20
Waterproof

IP66
Dimensions

3.07 in x 0.73 in x 0.38 in

Description

Exceptional Materials: 99.99% pure gold thread paired with a pure copper bracket coated in silver for optimal performance and durability.

Uncompromising Quality: 100% testing during production ensures reliability and precision in every product.

Illuminate with Professional Brilliance

The ProGlo LED Modules by ENVO are engineered to provide high-performance lighting solutions for signage applications, making them ideal for high-traffic locations such as airports, metros, banks, buildings, and shopping malls. Featuring cutting-edge technology and superior design, these modules ensure that your displays are both vibrant and reliable.

Key Features:

Powered by High Output PHILIPS LED: Utilize top-quality PHILIPS LEDs for robust and efficient illumination, ensuring your signage is prominently visible.
Constant Current Design: Provides stable and consistent lighting performance, enhancing the reliability and longevity of the LED modules.(Constant Voltage Input)
Integrated Transparent 170° Optic Lens: Offers a wide-angle light distribution for uniform coverage, maximizing visibility and minimizing shadows.
Flexible Installation: Available in configurations of 30 or 20 pieces per string, allowing for adaptable installation to meet various project requirements.
Certified Quality and Safety: The ProGlo LED Modules are CE, RoHS, UL, TUV, BIS, CB, and LM-80 certified, reflecting ENVO's commitment to maintaining high standards of quality, safety, and environmental responsibility.

Application:

These modules are perfect for signs with depths ranging from 6-15 cm, providing optimal illumination for a variety of commercial and public settings.

Enhance your signage with the ProGlo LED Modules by ENVO, where innovative design meets professional-grade performance to deliver superior lighting solutions tailored to your specific needs.

File Downloads

::specification::

Specifications

Brand

Envo
Series

ProGlo
Power Rating

1.08 Watt
Rated Current

0.09 Ampere
Operating Temperature

-25°C~60°C
Warranty

5 Year
Length

3.07 in
Width

0.73 in
Height

0.38 in
Weight

0.04 lb
