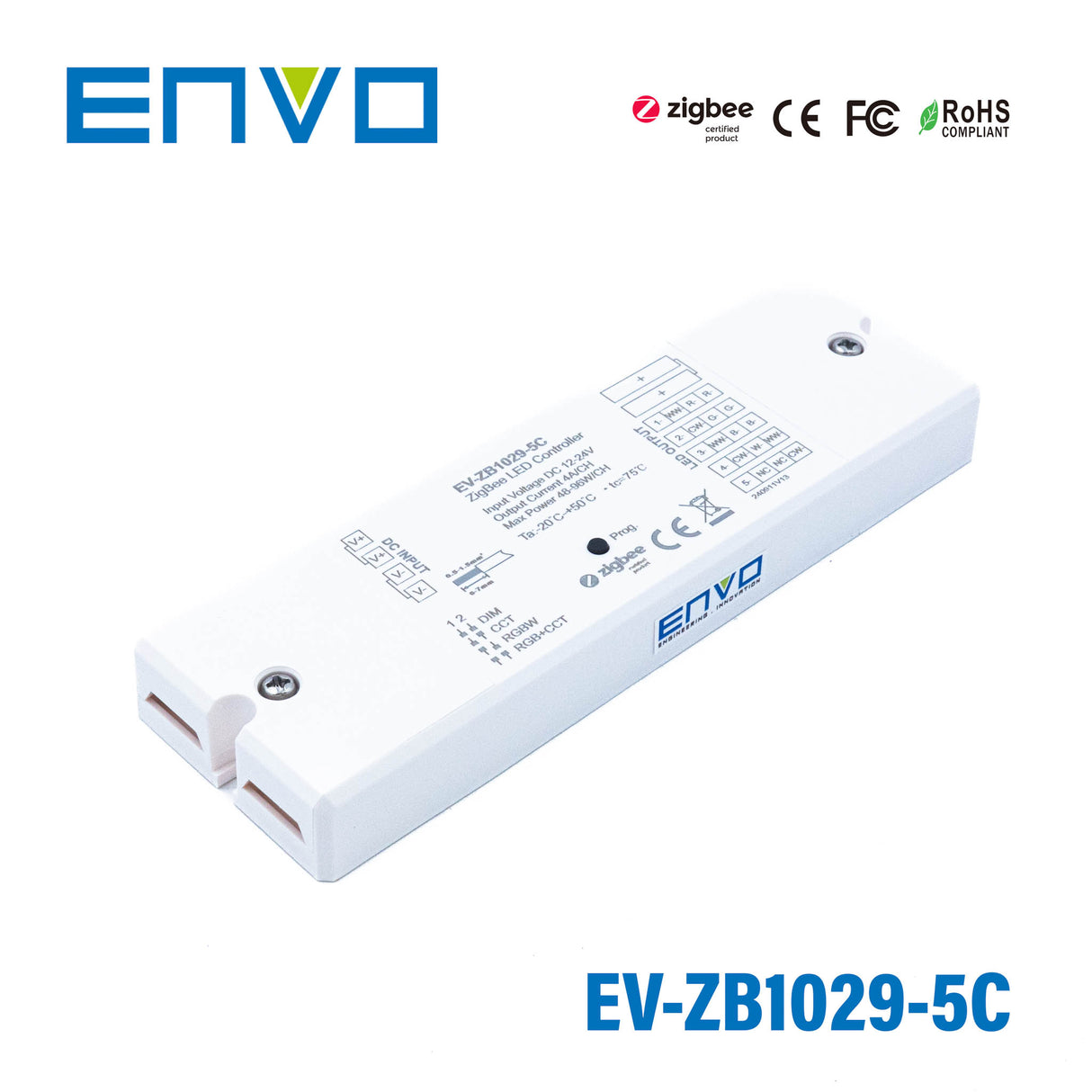

ENVO ZigBee Super Thin 5 Channel Controller 12-24V 4A per Channel

Name: ENVO ZigBee Super Thin 5 Channel Controller 12-24V 4A per Channel
Brand: Envo
SKU: EV-ZB1029-5C
Price: 49.03 USD
Availability: InStock

16mm height, 4-in-1 universal controller, ZigBee 3.0 protocol, support Touchlink

SKU:

EV-ZB1029-5C

$49.03 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Key Specifications

Dimming Control

Zigbee
Input Voltage

12V~24V
Output Channel

4A - 5 Channel
Controller Type

RGBW Dimming
Dimensions

5.71 in x 1.83 in x 0.63 in

Description

Features:

4 in 1 universal Zigbee LED controller based on the latest ZigBee 3.0 protocol

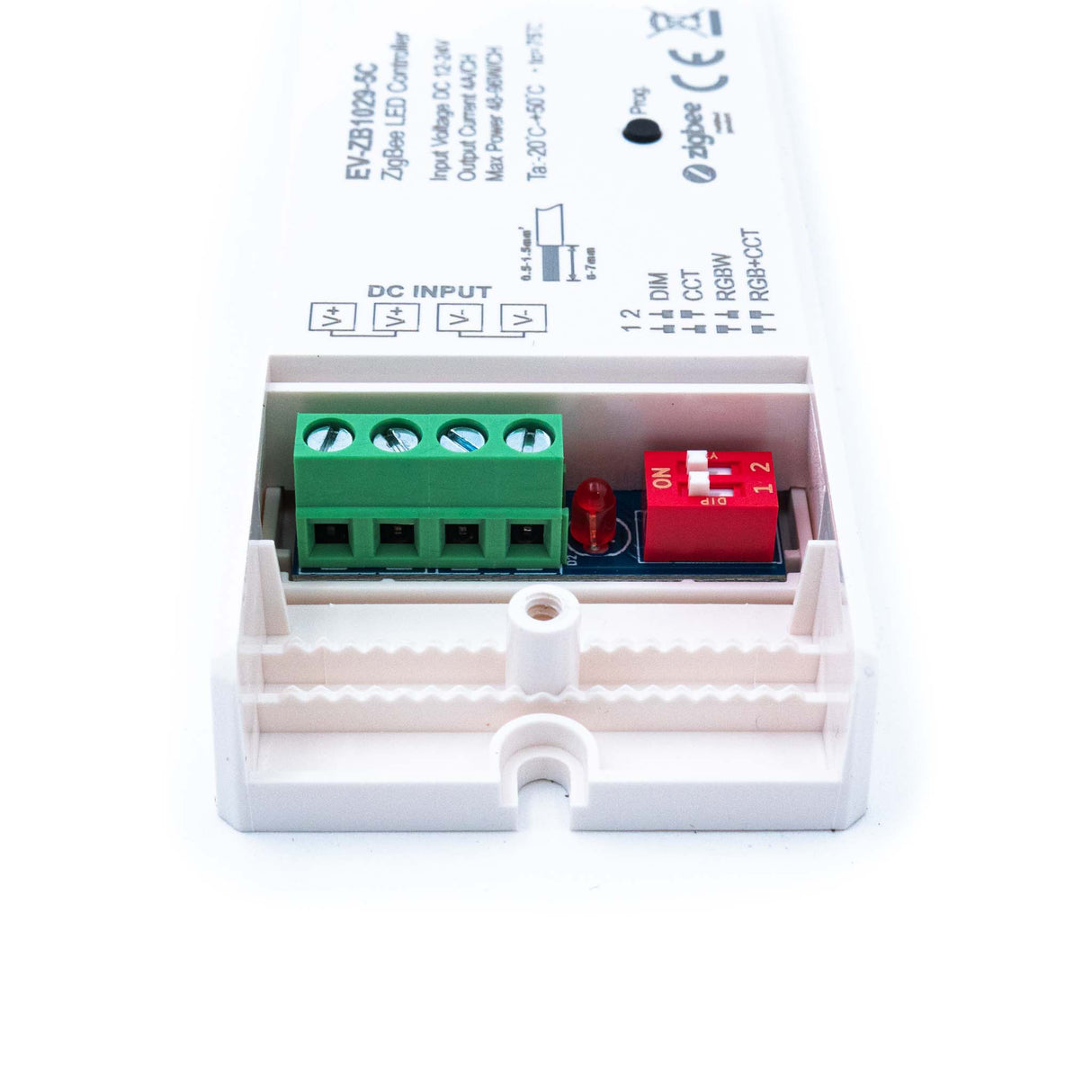

4 different device modes DIM, CCT, RGBW, and RGB+CCT in 1 controller, and selectable by dial switch
Enables to control ON/OFF, light intensity, color temperature, RGB color of connected LED lights
Can directly pair to a compatible ZigBee remote via Touchlink
Supports self-forming Zigbee network without a coordinator
Supports find and bind mode to bind a ZigBee remote
It supports Zigbee green power and can bind max. 20 Zigbee Green power remotes
Compatible with universal Zigbee gateway or hub products
Compatible with universal Zigbee remotes
Waterproof grade: IP20

General Specification

Input Voltage

12-24VDC

Output Current

4A/CH

Output Power

48-96W/CH

Output Type

Constant Voltage

Ambient Temperature

-20°C ~ +50°C

Max. Casing Temperature

75°C

Dimension (LxWxH)

145x46.5x16mm

File Downloads

::specification::

Specifications

Brand

Envo
Series

ENVO Zigbee Series
Power Rating

240 Watt
Output Voltage

12 Volt
Rated Current

4 Ampere
Input Voltage

12V~24V
Standards Met

CE,FC,ROHS
Operation Mode

Constant Voltage
Operating Temperature

-20°C~50°C
Warranty

5 Year
Length

5.71 in
Width

1.83 in
Height

0.63 in
