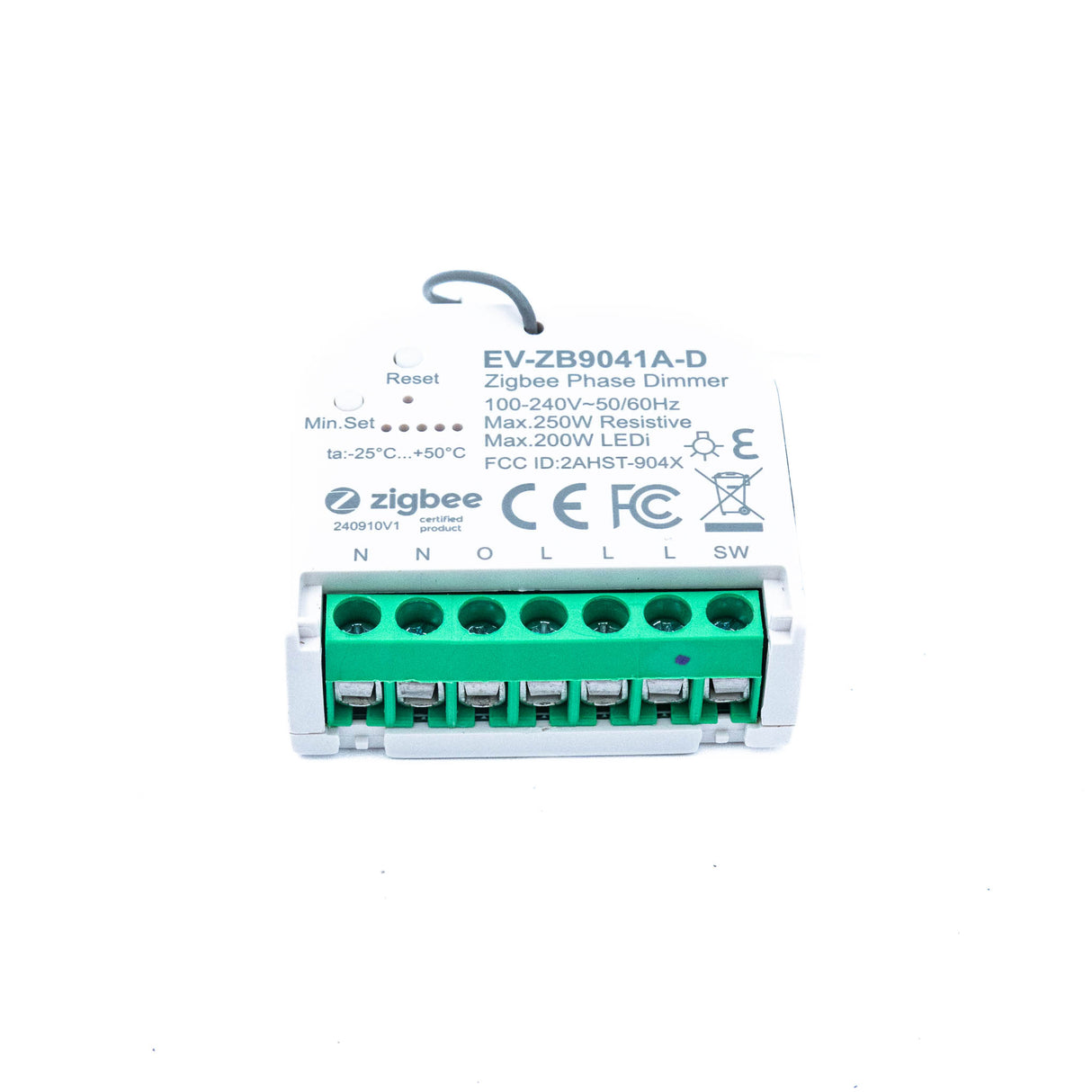

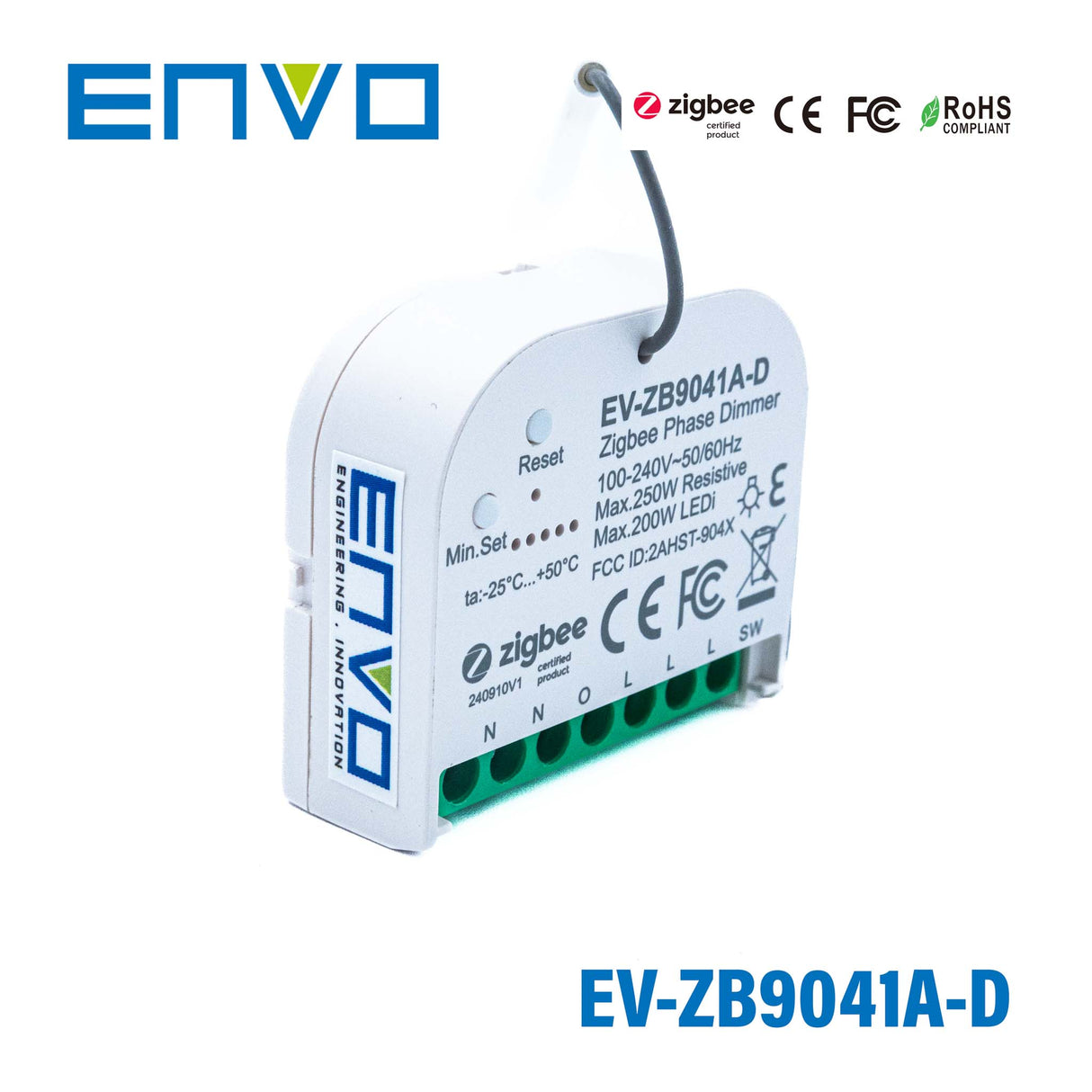

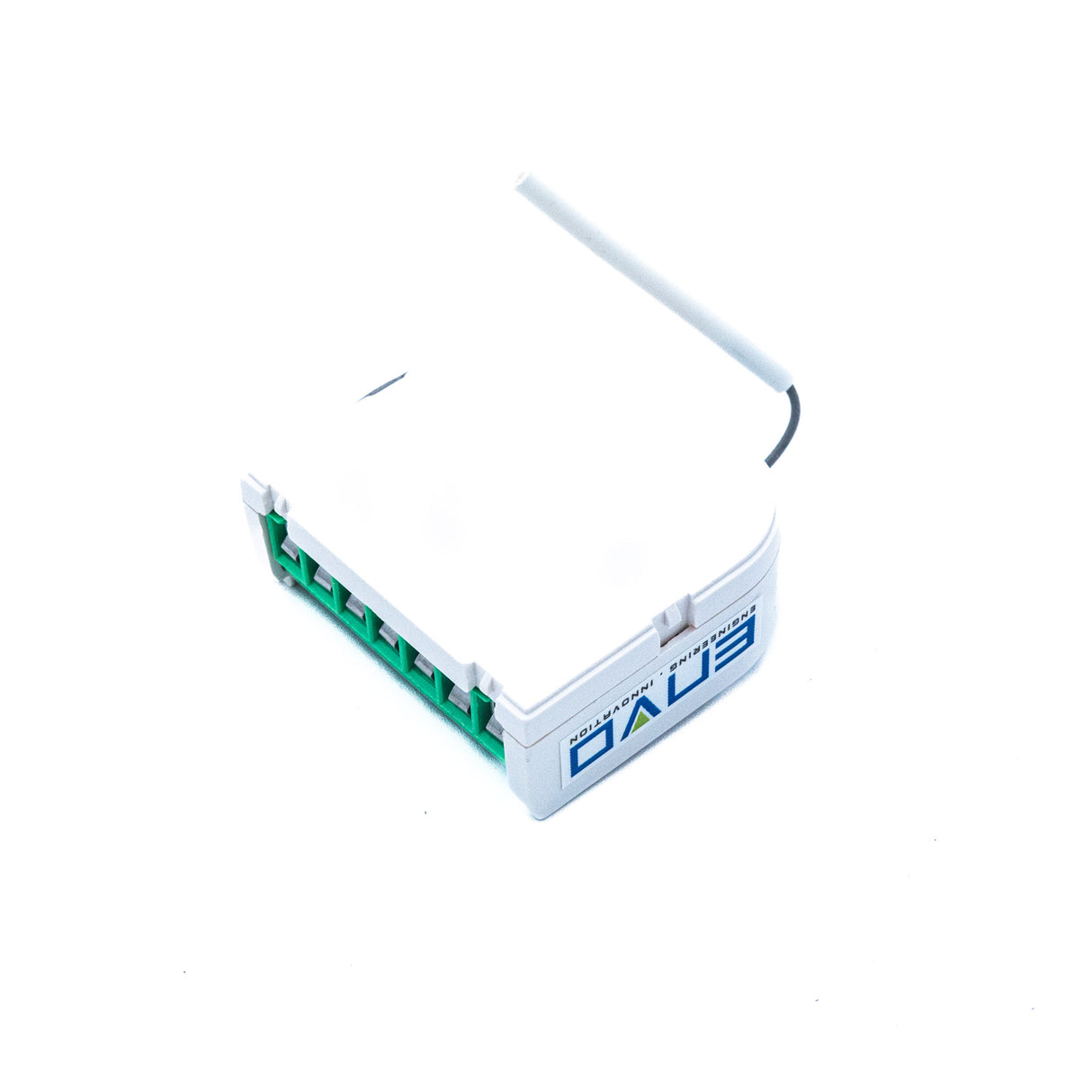

ENVO ZigbBee Mini In Wall AC Phase Smart Dimmer

Name: ENVO ZigbBee Mini In Wall AC Phase Smart Dimmer
Brand: Envo
SKU: EV-ZB9041A-D
Price: 41.73 USD
Availability: InStock

ZigBee 3.0 protocol, support Touchlink, can be controlled by remote

SKU:

EV-ZB9041A-D

$41.73 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Key Specifications

Dimming Control

Dimmable
Input Voltage

100V~240V
Output Channel

1 Channel
Dimensions

1.65 in x 1.5 in x 0.63 in

Description

Features:

Can operate under two-wire connection with no neutral lead or three-wire connection with neutral lead
Advanced microprocessor control
Implemented algorithm of smart light source detection
Active power and energy metering functionality
Soft start function
Innovative minimum dimming level and startup brightness setting function
Works with various types of switches – momentary, toggle, three-way, etc.
Active element: semiconductor electronic switch
To be installed in wall switch boxes of dimensions allowing for installation, conforming to provisions of applicable regulations
The Bypass is an extension unit
DO NOT install with power applied to device.
DO NOT expose the device to moisture.

General Specification

Input Voltage

100-240VAC

Output Voltage

100-240VAC

Output Current

0.1-1.1A

Dimmable LED lamps

200W @ 230V

100W @ 110V

Dimmable LED drivers

200W @ 230V

100W @ 110V

Incandescent lighting, HV Halogen lamps

250W @ 230V

125W @ 110V

Low voltage halogen lighting with electronic transformers

200W @ 230V

100W @ 110V

Dimension (LxWxH)

42x38x16mm

File Downloads

::specification::

Specifications

Brand

Envo
Series

ENVO Zigbee Series
Power Rating

250 Watt
Output Voltage

110 Volt
Rated Current

1.1 Ampere
Input Voltage

100V~240V
Standards Met

CE,FC,ROHS
Operation Mode

Constant Voltage
Operating Temperature

-20°C~50°C
Warranty

5 Year
Length

1.65 in
Width

1.5 in
Height

0.63 in
