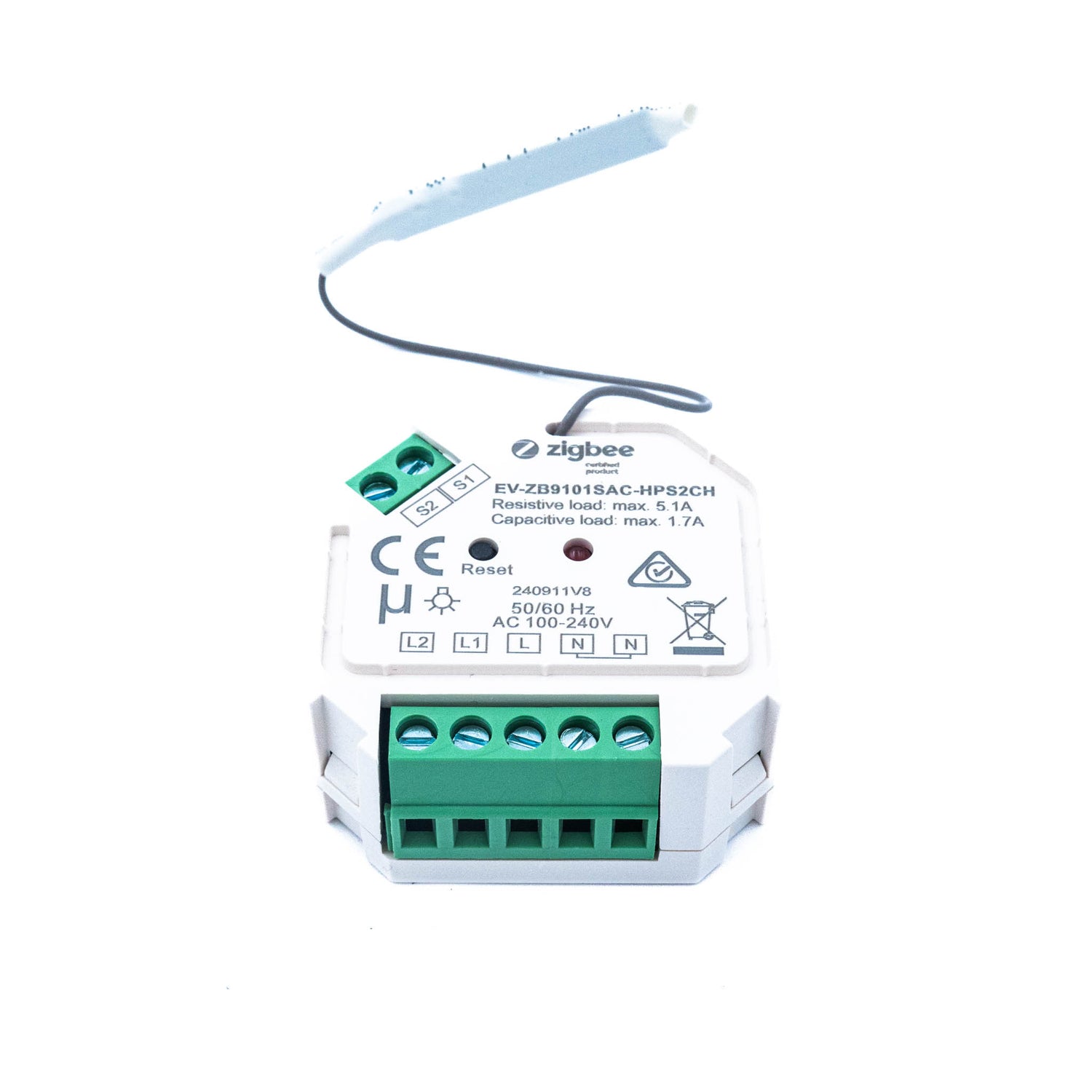

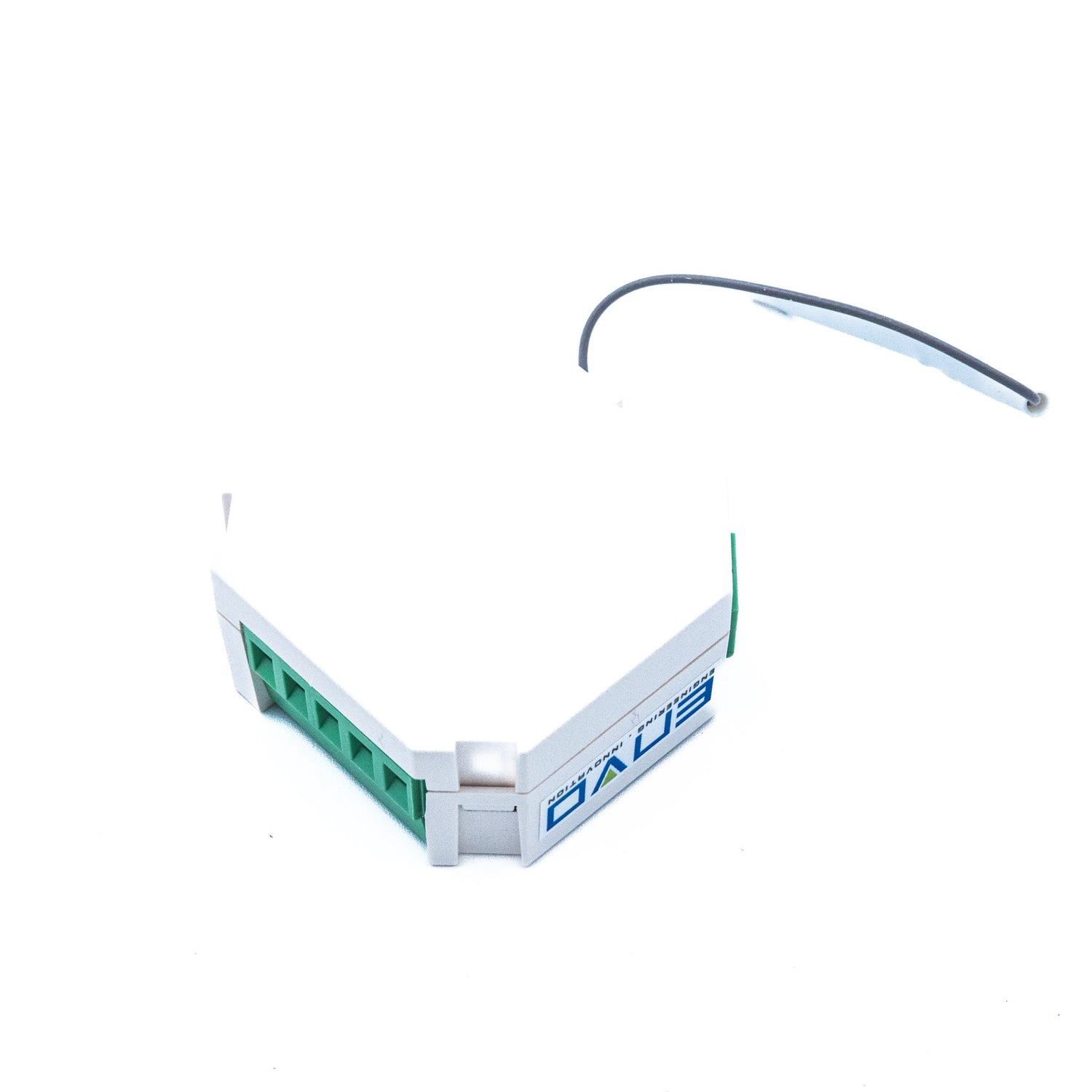

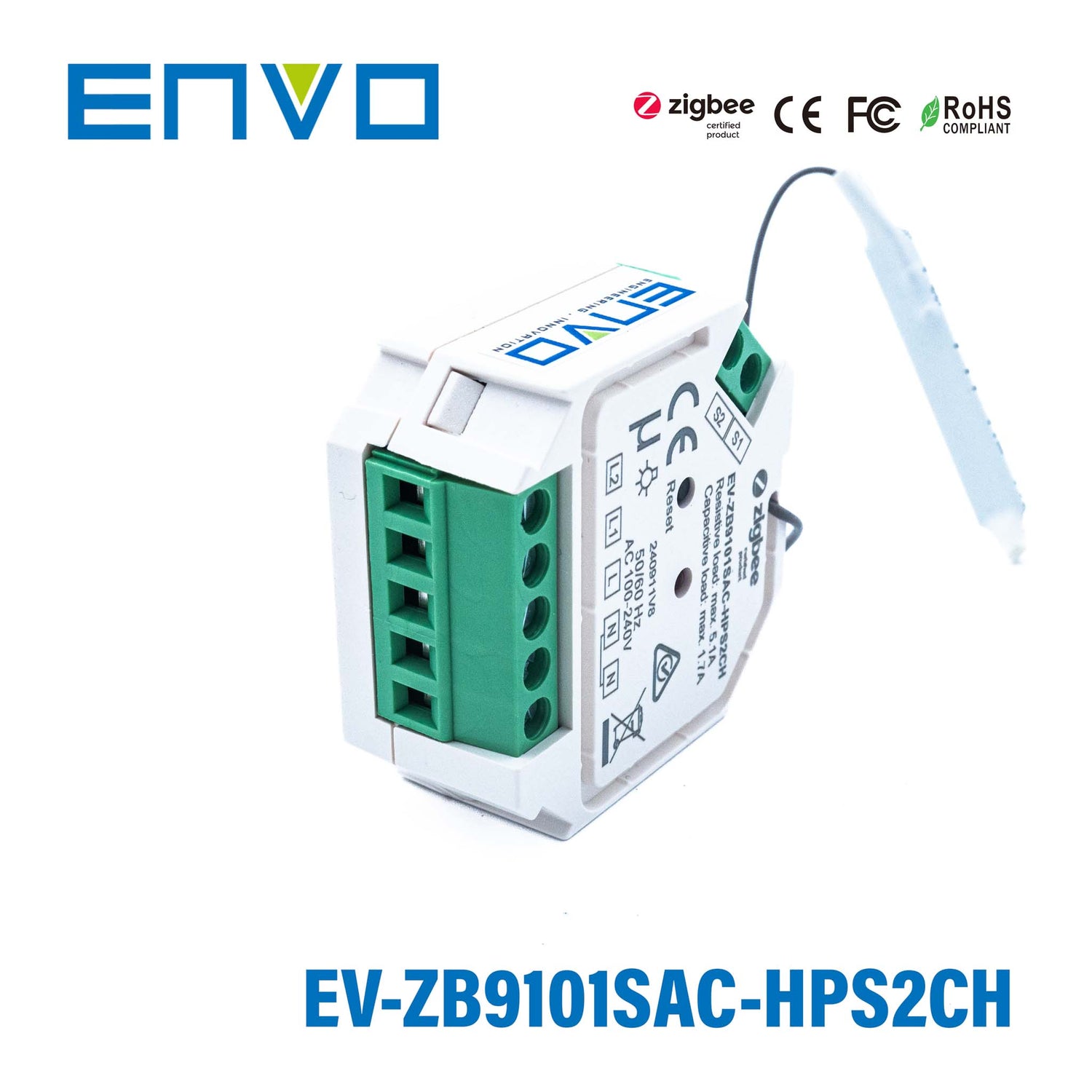

ENVO ZigBee 2Gang In-wall Switch - On/Off Control

Name: ENVO ZigBee 2Gang In-wall Switch - On/Off Control
Brand: Envo
SKU: EV-ZB9101SAC-HPS2CH
Price: 60.05 USD
Availability: InStock

ZigBee 3.0 protocol, support Touchlink, can be controlled by remote

SKU:

EV-ZB9101SAC-HPS2CH

$60.05 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Key Specifications

Dimming Control

Zigbee
Input Voltage

100V~240V
Output Channel

1 Channel
Dimensions

1.79 in x 1.77 in x 0.8 in

Description

Features:

2-gang ZigBee in-wall switch based on latest ZigBee 3.0 protocol
100-240VAC wide input and output voltage
Supports resistive loads and capacitive loads
2 channels output, max. load 5.1A/CH
Input and output with screw terminals, safe and reliable
Enables to control ON/OFF of connected load
ZigBee device with 2 endpoints which can be controlled separately
ZigBee end device that supports Touchlink commissioning
Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
Supports self-forming zigbee network without coordinator and add other devices to the network
Supports find and bind mode to bind a ZigBee remote
Supports zigbee green power and can bind max. 20 zigbee green power switches
Compatible with universal ZigBee gateway products
Can be controlled by universal single wire push switch, 2 channels can be controlled separately by 2 switches
Active power and energy metering functionality
Mini Size, Easy to be installed into a standard wall box
Radio Frequency : 2.4GHz
Waterproof grade: IP20
DO NOT install with power applied to device.
DO NOT expose the device to moisture.

General Specification

Zigbee Protocol

Zigbee 3.0

Input Voltage

100-240VAC

Output Voltage

100-240VAC

Output Channel

2 Channels

Max. Load

Resistive load: max. 5.1A/CH

Capacitive load: max. 1.7A/CH

Input Type

Constant voltage

Dimension (LxWxH)

45.5x45x20.3mm

File Downloads

::specification::

Specifications

Brand

Envo
Series

ENVO Zigbee Series
Power Rating

390 Watt
Output Voltage

230 Volt
Rated Current

1.7 Ampere
Input Voltage

100V~240V
Standards Met

CE,FC,ROHS
Operation Mode

Constant Voltage
Operating Temperature

-20°C~50°C
Warranty

5 Year
Length

1.79 in
Width

1.77 in
Height

0.8 in
