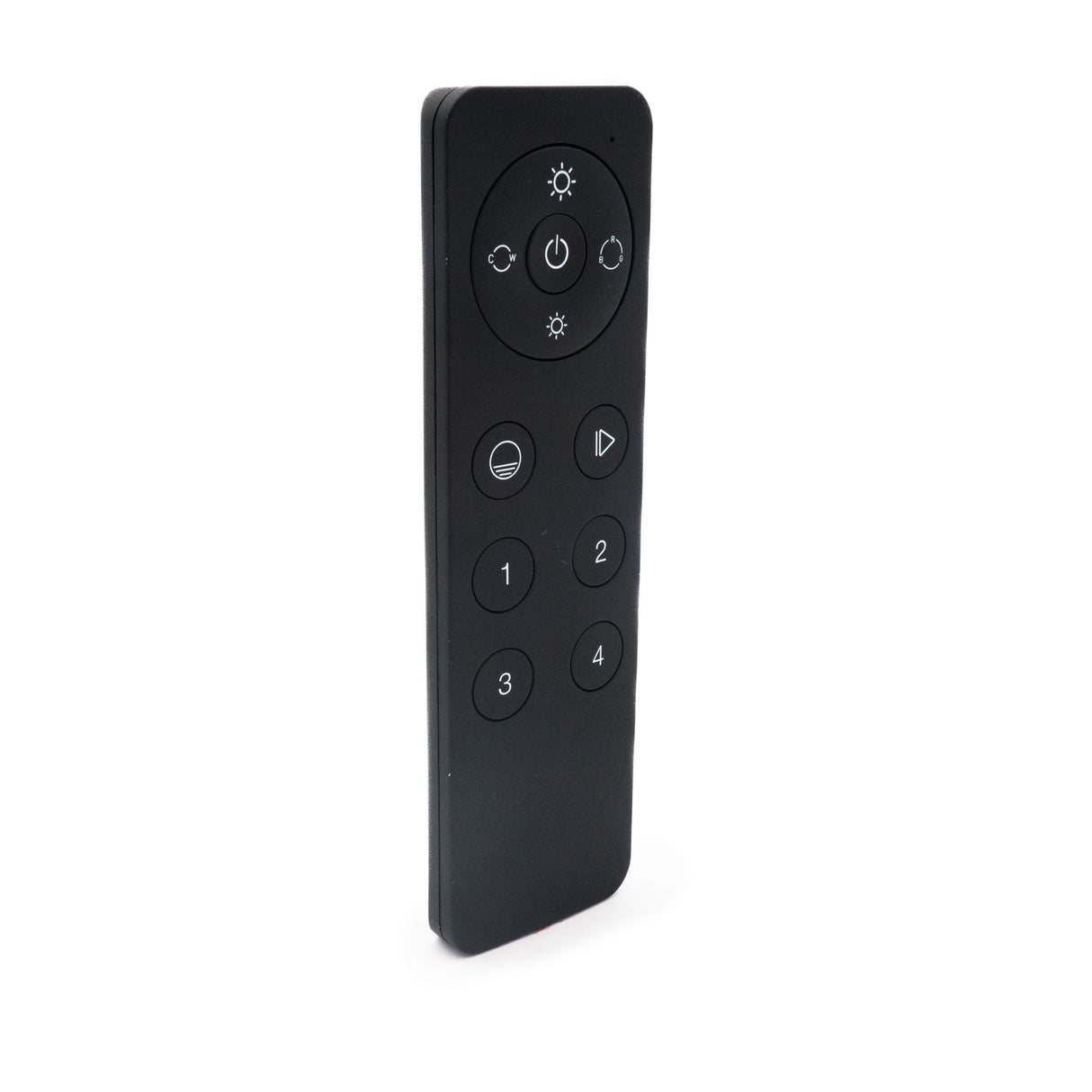

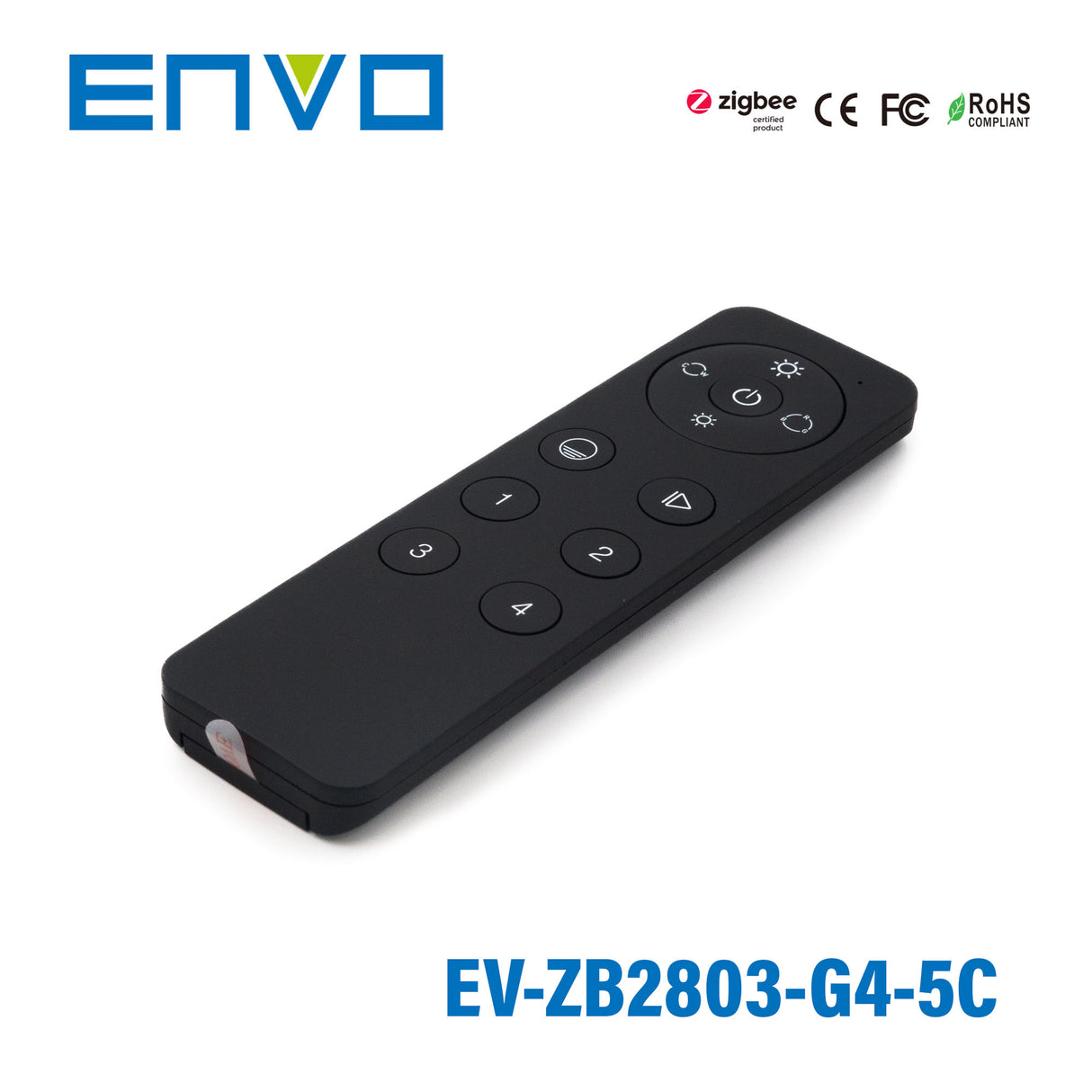

ENVO ZigBee Classic Remote 3-in-1 - 4 Zones

Name: ENVO ZigBee Classic Remote 3-in-1 - 4 Zones
Brand: Envo
SKU: EV-ZB2803-G4-5C
Price: 39.63 USD
Availability: InStock

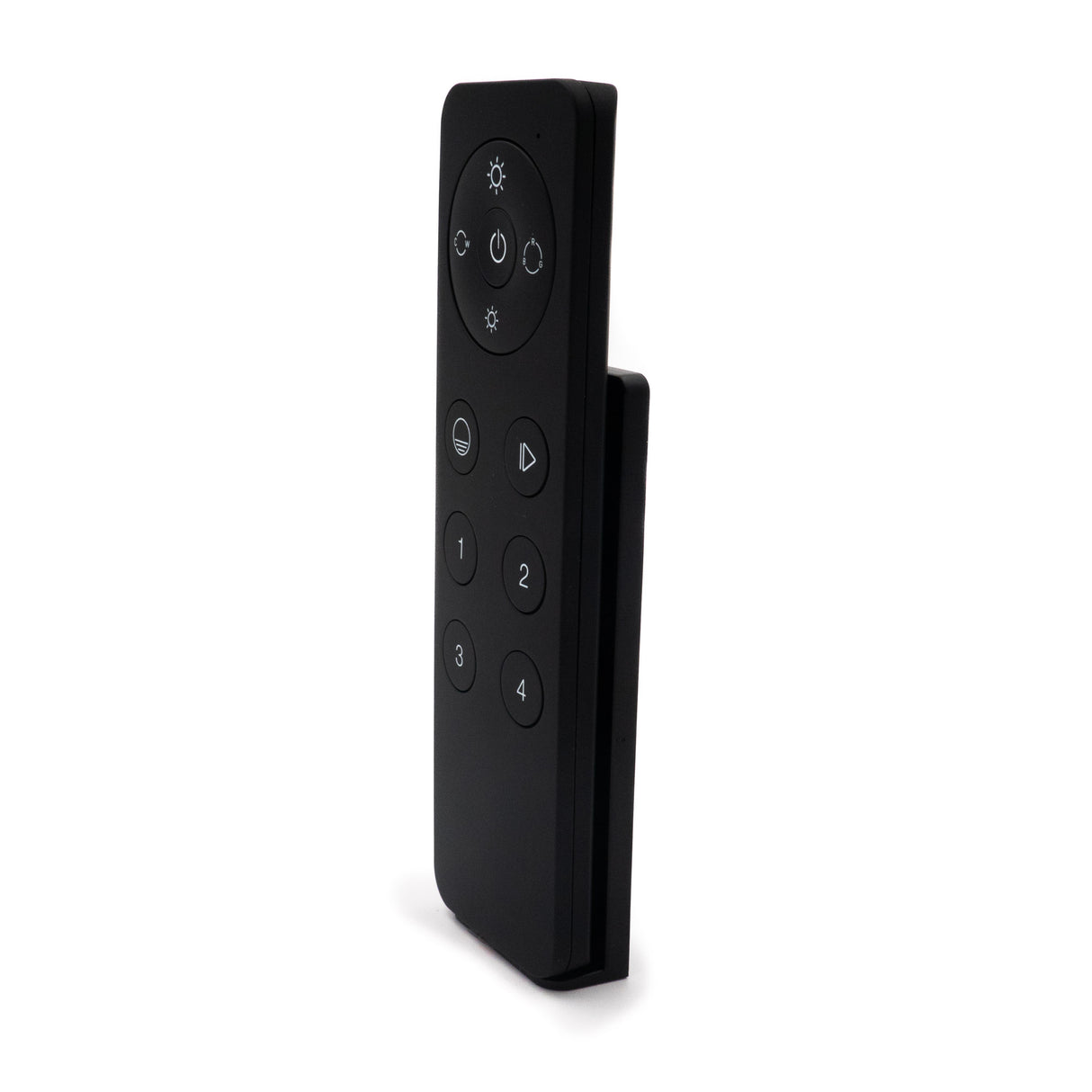

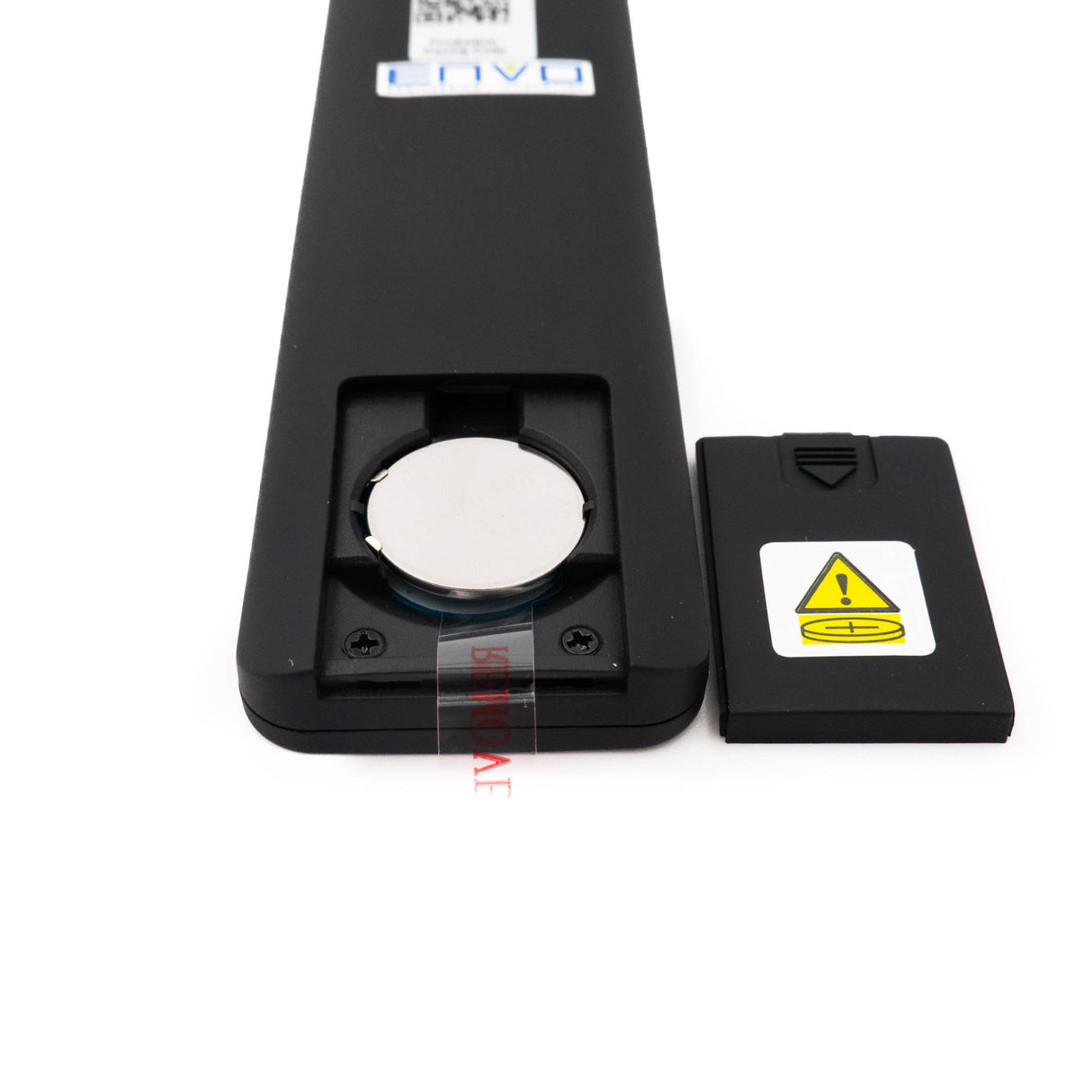

ZigBee 3.0 protocol, 3VDC(CR2032 battery), comes with magnetic bracket

SKU:

EV-ZB2803-G4-5C

$39.63 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Key Specifications

Dimming Control

Zigbee
Output Channel

1 Channel
Dimensions

5.37 in x 1.53 in x 0.42 in

Description

Features:

ZigBee RGB+CCT+DIM remote based on ZigBee 3.0
Enables to control both RGB and CCT lighting devices
Battery powered remote with low power consumption
Enables to pair ZigBee lighting devices via touchlink commissioning without coordinator
Supports find and bind mode to pair with ZigBee lighting devices
Supports 4 groups for binding max. 30 lighting devices
2.4 GHz global operation
Transmission range up to 30m
Compatible with universal ZigBee Gateway products
Enables to bind and control universal DIM, CCT, RGB, RGBW and RGB+CCT zigbee lighting devices

General Specification

Protocol

ZigBee 3.0

Operation Voltage

3VDC (CR2025)

Transmission Frequency

2.4GHz

Transmission Range (free field)

30m

Protection Type

IP20

Dimming Range

0.1%-100%

Dimension (LxWxH)

136.3x38.9x10.7mm

File Downloads

::specification::

Specifications

Brand

Envo
Series

ENVO Zigbee Series
Output Voltage

3 Volt
Standards Met

CE,FC,ROHS
Operation Mode

Constant Voltage
Operating Temperature

-20°C~50°C
Warranty

5 Year
Length

5.37 in
Width

1.53 in
Height

0.42 in
