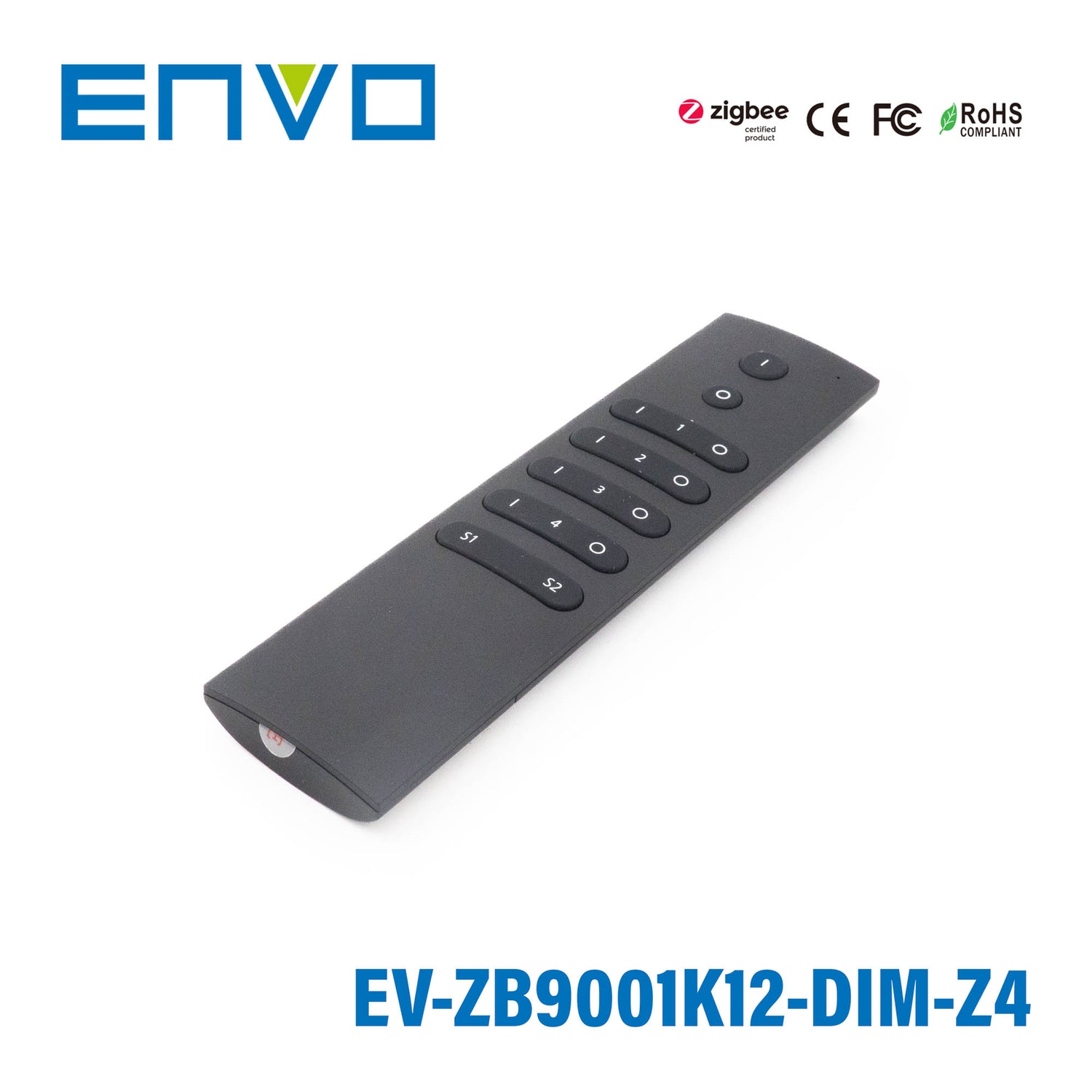

ENVO ZigBee Classic Remote Single Colour - 4 Zones

ZigBee 3.0 protocol, 3VDC(CR2032 battery), comes with magnetic bracket
SKU:
EV-ZB9001K12-DIM-Z4

$39.63 USD
Shipping calculated at checkout.
|

Key Specifications

  • Dimming Control
    Zigbee
  • Output Channel
    1 Channel
  • Dimensions
    5.91 in x 1.52 in x 0.47 in

Description

Features:

  • ZigBee dimmer switch based on ZigBee 3.0
  • Enables to pair ZigBee lighting devices via touchlink commissioning without coordinator
  • Supports find and bind mode to pair with ZigBee lighting devices in the same network
  • Supports 4 groups for binding max. 30 lighting devices
  • 2.4 GHz global operation
  • Long battery life mesh technology
  • Transmission range up to 30m
  • Compatible with universal ZigBee Gateway products
  • Compatible with universal single color ZigBee lighting devices

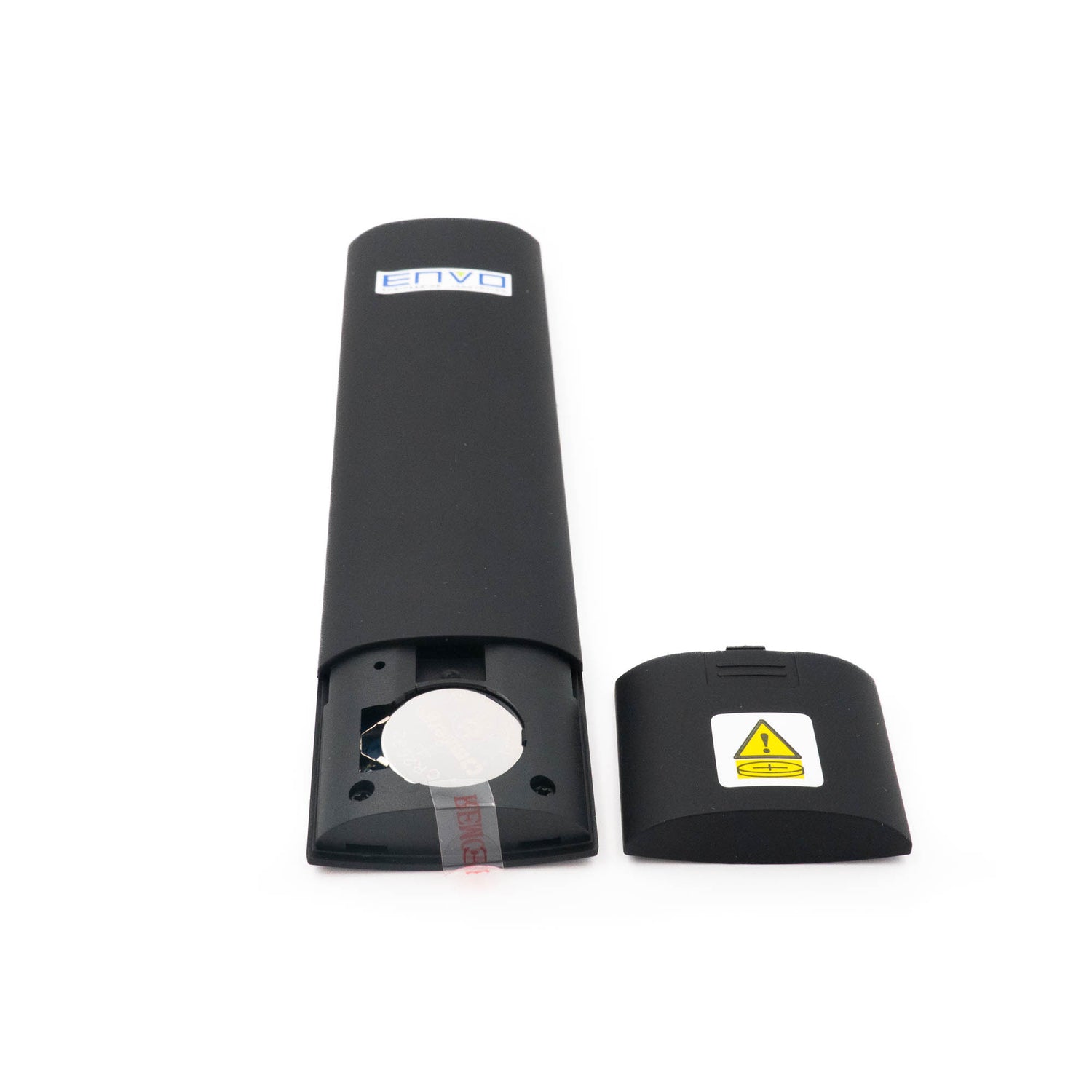

  • This device contains a button lithium battery that shall be stored and disposed properly.
  • DO NOT expose the device to moisture.

General Specification

Protocol

ZigBee 3.0

Operation Voltage

3VDC (CR2032)

Transmission Frequency

2.4GHz

Transmission Range (free field)

30m

Dimming Range

0.1%-100%

Protection Type

IP20

Dimension (LxWxH)

150x38.6x12mm

File Downloads

::specification::

Specifications

  • Brand
    Envo
  • Series
    ENVO Zigbee Series
  • Output Voltage
    3 Volt
  • Standards Met
    CE,FC,ROHS
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~50°C
  • Warranty
    5 Year
  • Length
    5.91 in
  • Width
    1.52 in
  • Height
    0.47 in
