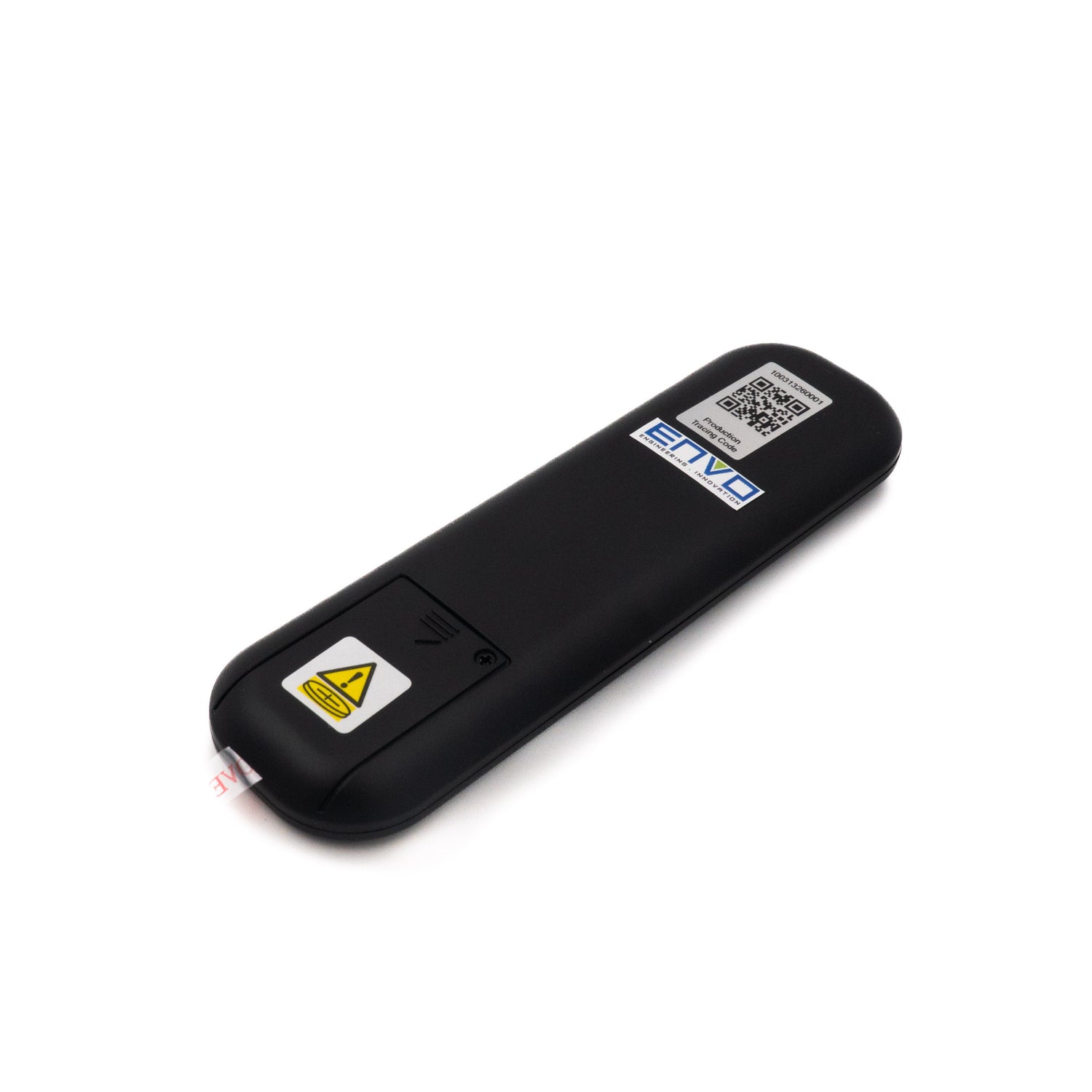

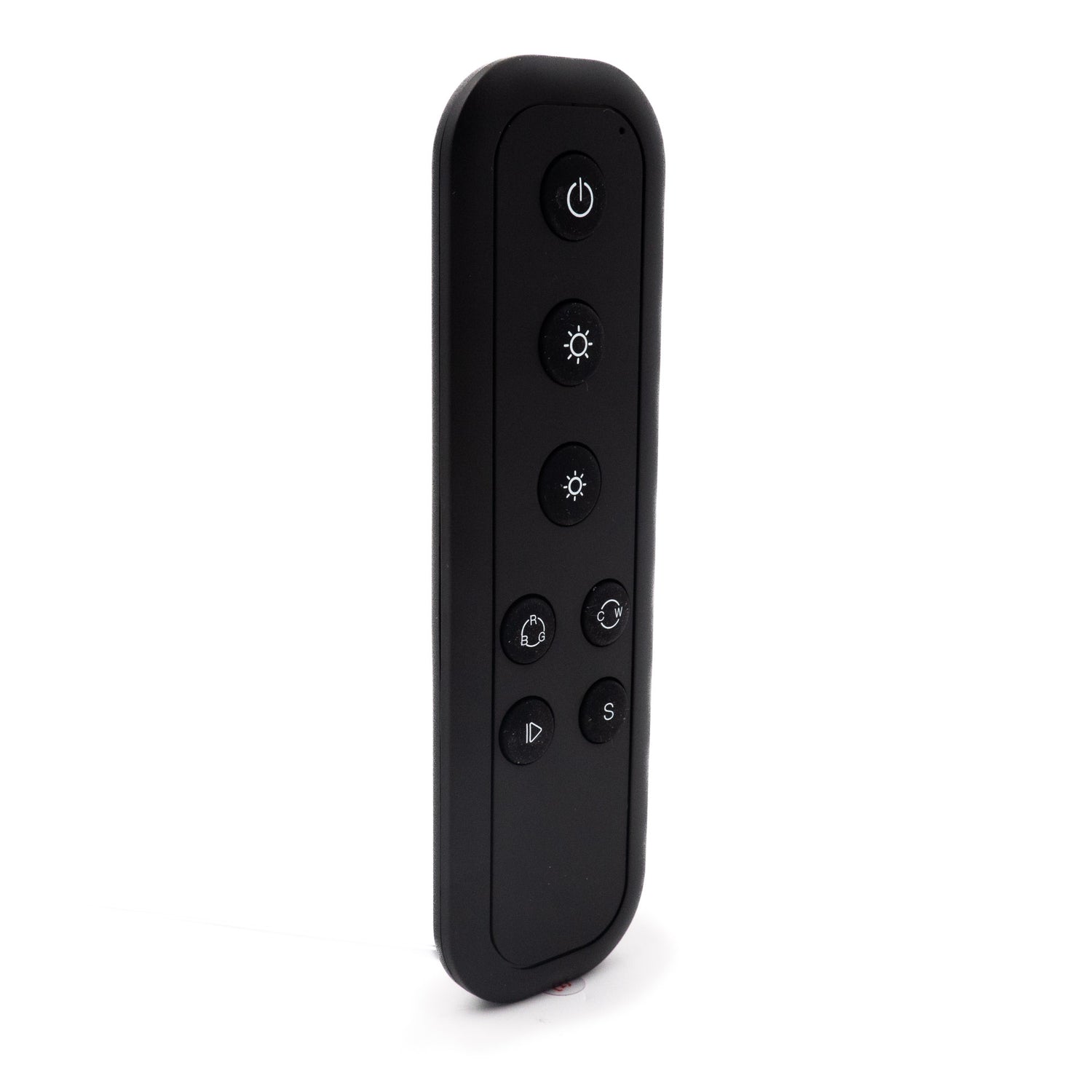

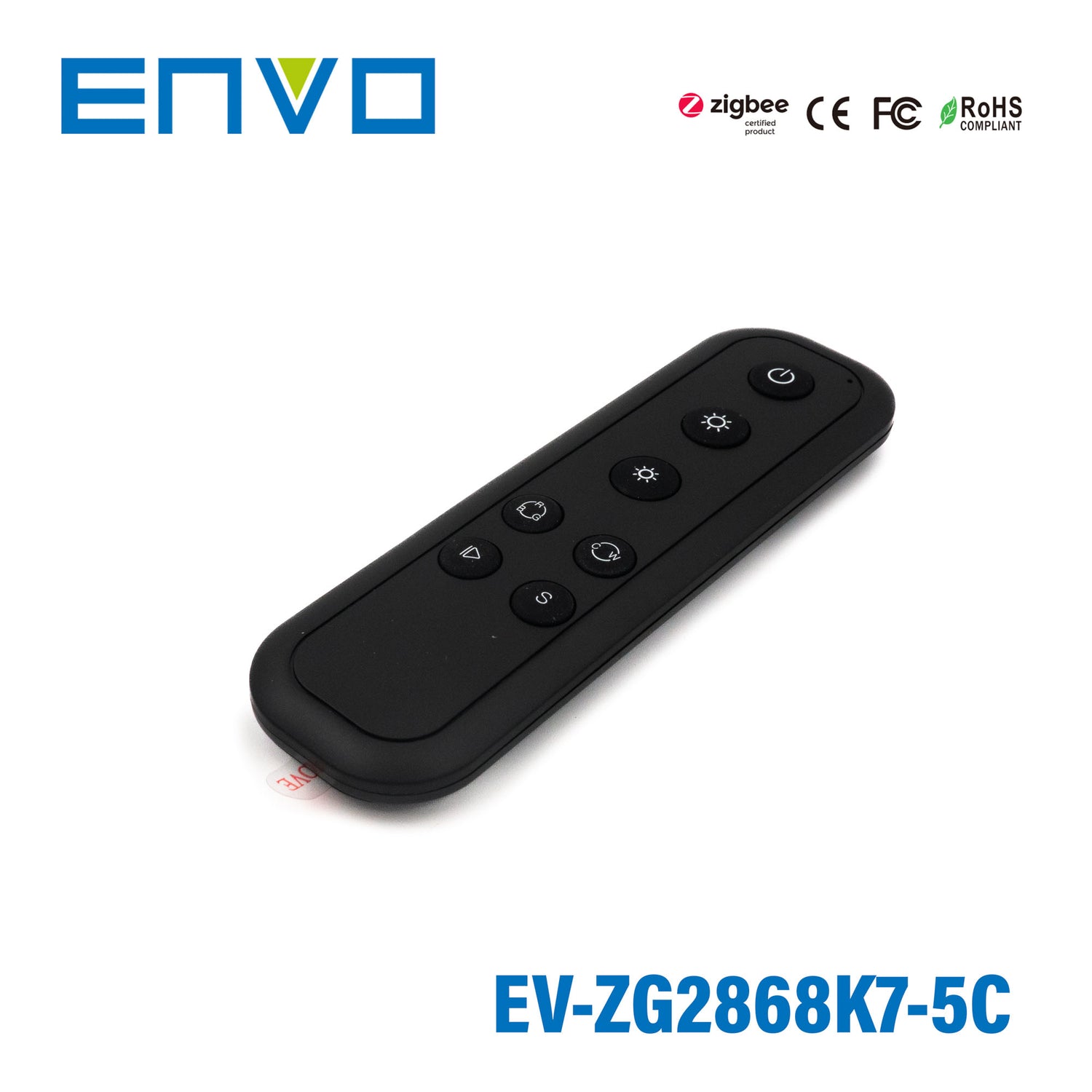

ENVO ZigBee Economic RGB+CCT Color Remote

Name: ENVO ZigBee Economic RGB+CCT Color Remote
Brand: Envo
SKU: EV-ZB2868K7-5C
Price: 25.52 USD
Availability: InStock

ZigBee 3.0 protocol, 3VDC(CR2025 battery), low cost

SKU:

EV-ZB2868K7-5C

$25.52 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Key Specifications

Dimming Control

Zigbee
Output Channel

1 Channel
Dimensions

5.39 in x 1.57 in x 0.45 in

Description

Features:

ZigBee RGB+CCT remote based on ZigBee 3.0
Enables to control RGB+CCT lighting devices
Battery powered remote with low power consumption
Enables to pair ZigBee lighting devices through Touchlink commissioning
Supports 1 group for binding max. 30 lighting devices
2.4 GHz global operation
Transmission range up to 30m
Compatible with universal ZigBee Gateway products
This device contains button lithium batteries that shall be stored and disposed properly.
DO NOT expose the device to moisture.

General Specification

Protocol

ZigBee 3.0

Operation Voltage

3VDC (CR2025 battery)

Transmission Frequency

2.4GHz

Transmission Range (free field)

30m

Dimming Range

0.1%-100%

Waterproof Grade

IP20

Dimension (LxWxH)

137x40x11.5mm

File Downloads

::specification::

Specifications

Brand

Envo
Series

ENVO Zigbee Series
Output Voltage

3 Volt
Standards Met

CE,FC,ROHS
Operation Mode

Constant Voltage
Operating Temperature

-20°C~50°C
Warranty

5 Year
Length

5.39 in
Width

1.57 in
Height

0.45 in
