Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

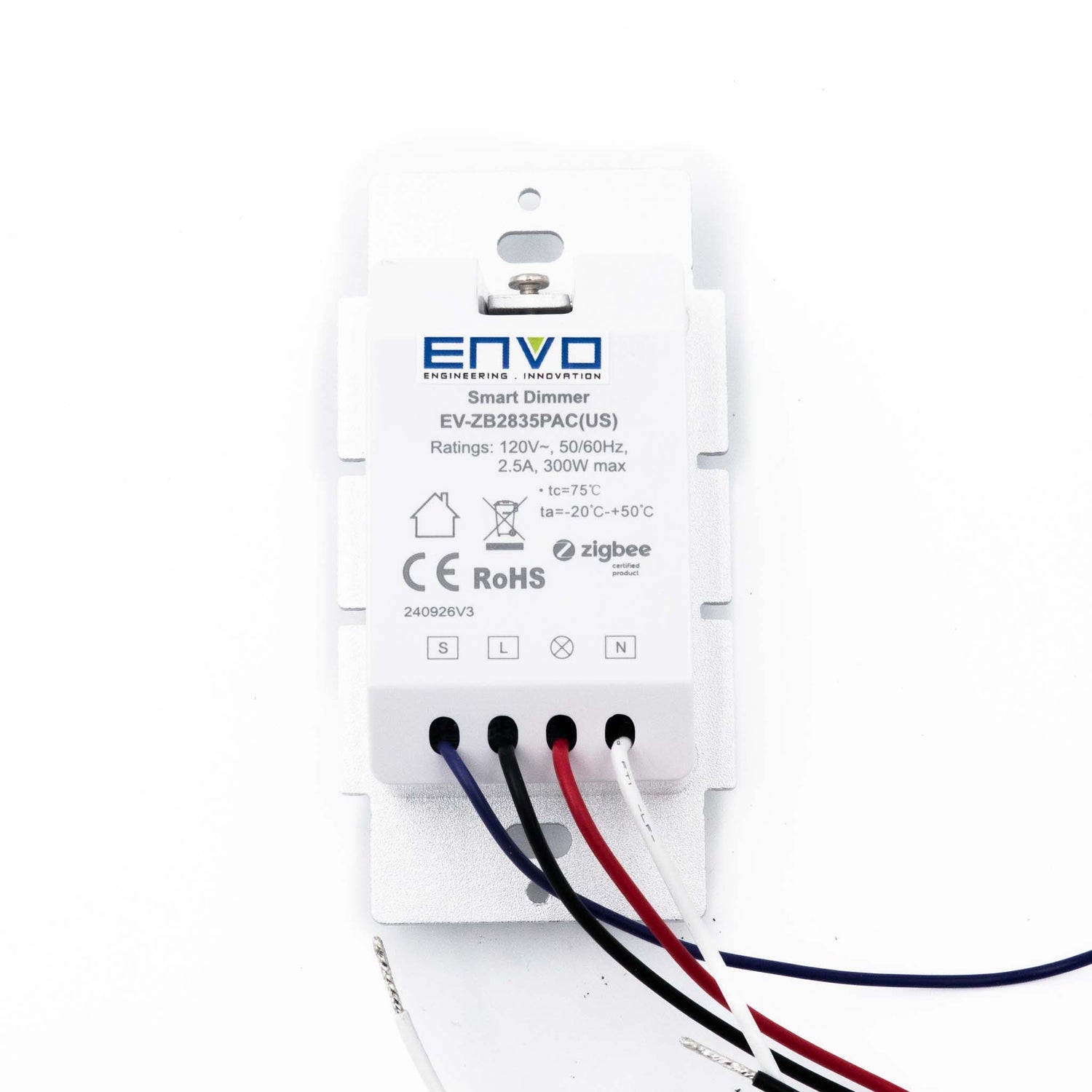

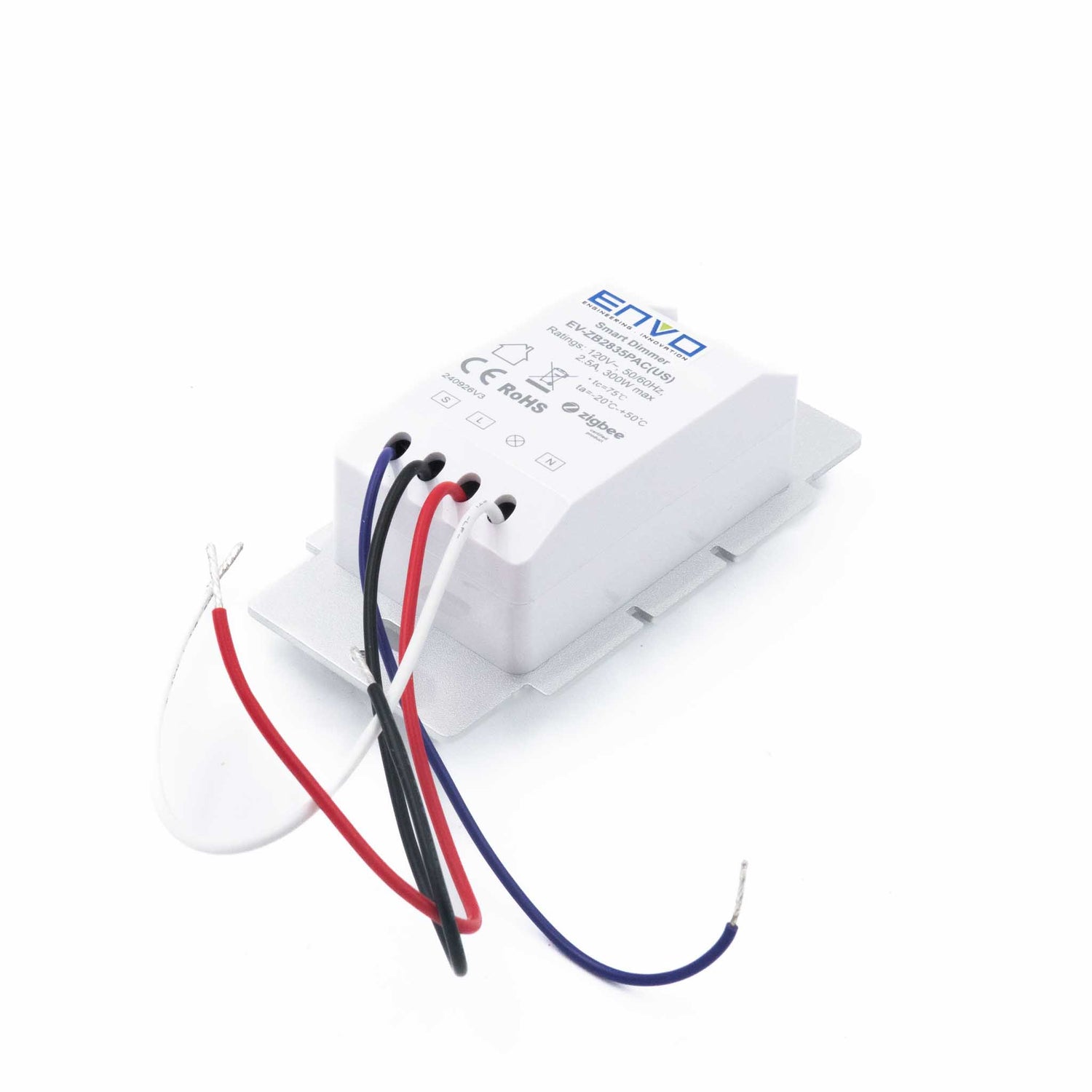

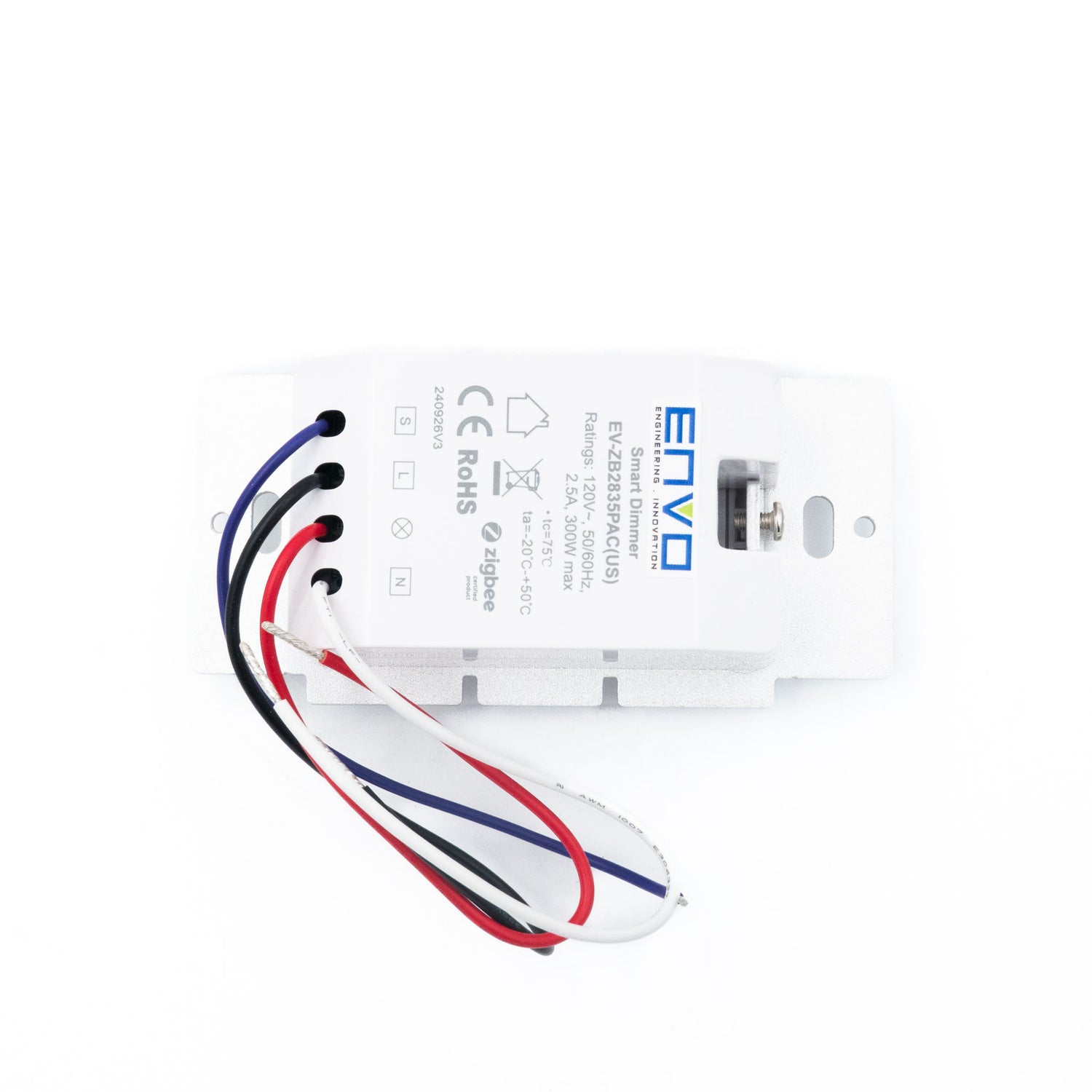

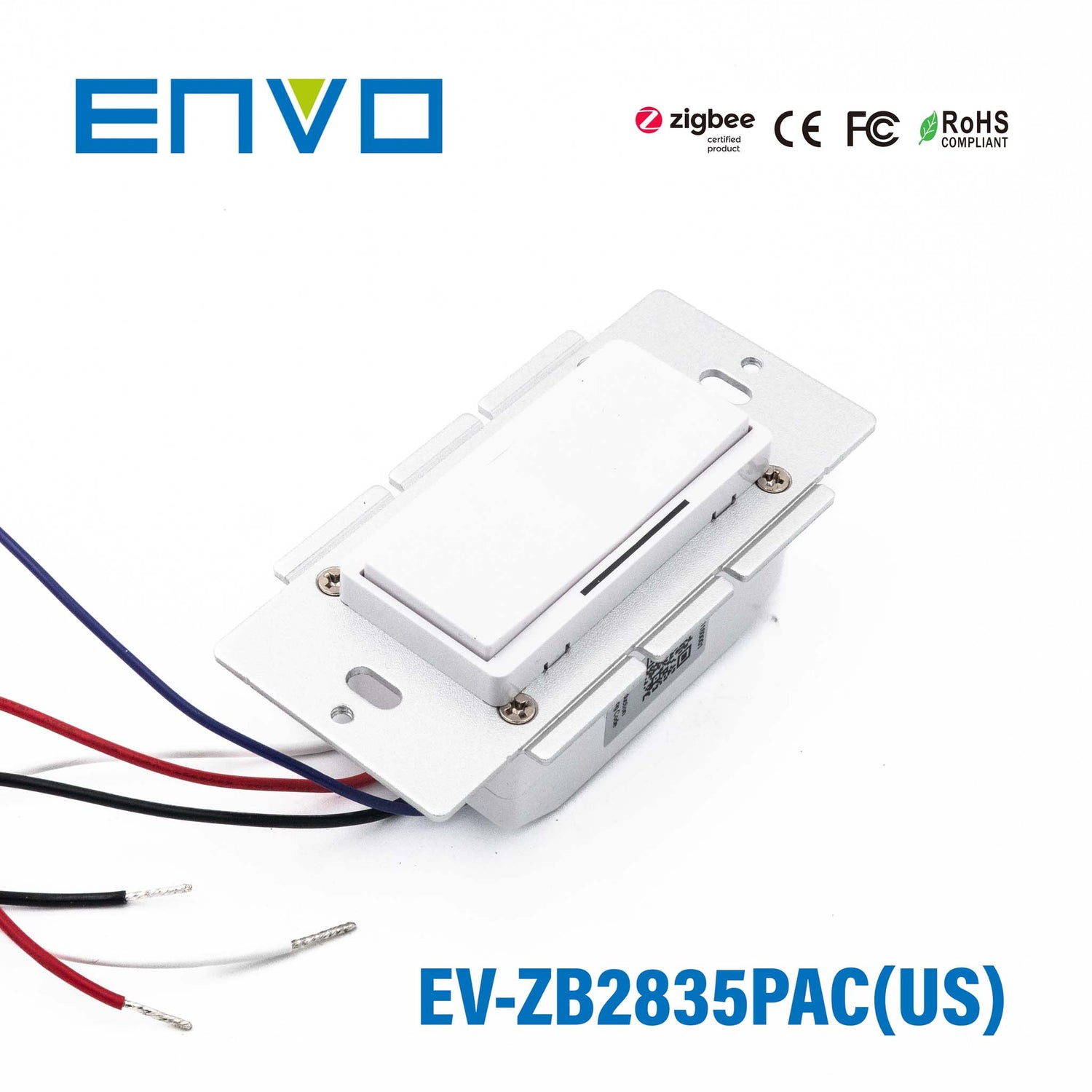

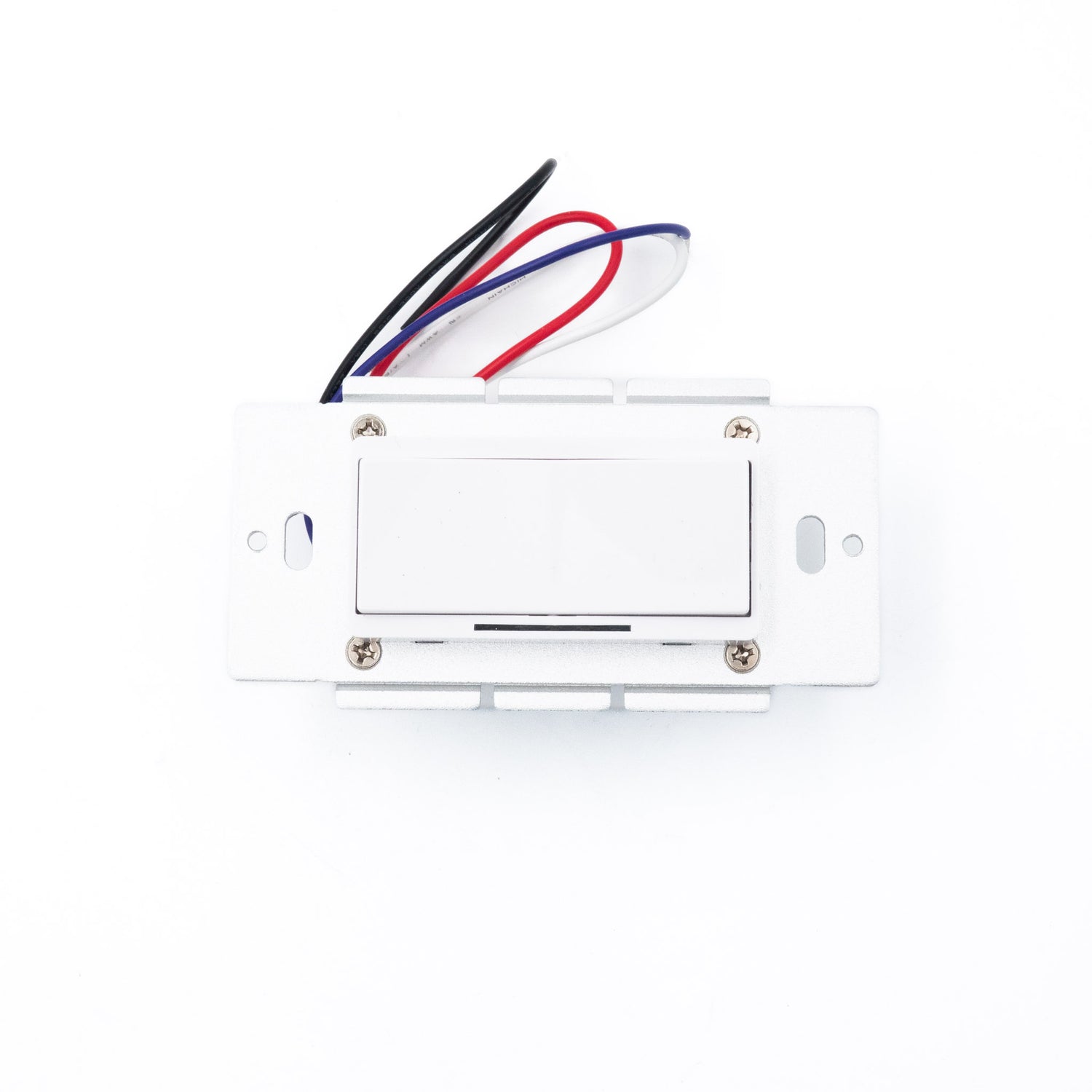

ENVO ZigBee US Standard Push Button Smart Dimmer

Name: ENVO ZigBee US Standard Push Button Smart Dimmer
Brand: Envo
SKU: EV-ZB2835PAC(US)
Price: 61.55 USD
Availability: InStock

ZigBee 3.0 protocol, 2.5A max, 120VAC

SKU:

EV-ZB2835PAC(US)

ENVO ZigBee US Standard Push Button Smart Dimmer is backordered and will ship as soon as it is back in stock.

$61.55 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Key Specifications

Dimming Control

Zigbee
Input Voltage

100V~240V
Output Channel

1 Channel
Dimensions

4.15 in x 2.15 in x 1.58 in

Description

Features:

Can operate under two-wire connection with no neutral lead or three-wire connection with neutral lead
Advanced microprocessor control
Implemented algorithm of smart light source detection
Active power and energy metering functionality
Soft start function
Innovative minimum dimming level and startup brightness setting functions
The Bypass is an extension unit

General Specification

Input Voltage

120VAC

Output Voltage

120VAC

Output Current

2.5A max

Ambient Temperature

-20°C ~ +50°C

Dimension (LxWxH)

105.5x54.7x40.03mm

File Downloads

::specification::

Specifications

Brand

Envo
Series

ENVO Zigbee Series
Power Rating

150 Watt
Output Voltage

120 Volt
Rated Current

2.5 Ampere
Input Voltage

100V~240V
Standards Met

CE,FC,ROHS
Operation Mode

Constant Voltage
Operating Temperature

-20°C~50°C
Warranty

5 Year
Length

4.15 in
Width

2.15 in
Height

1.58 in
