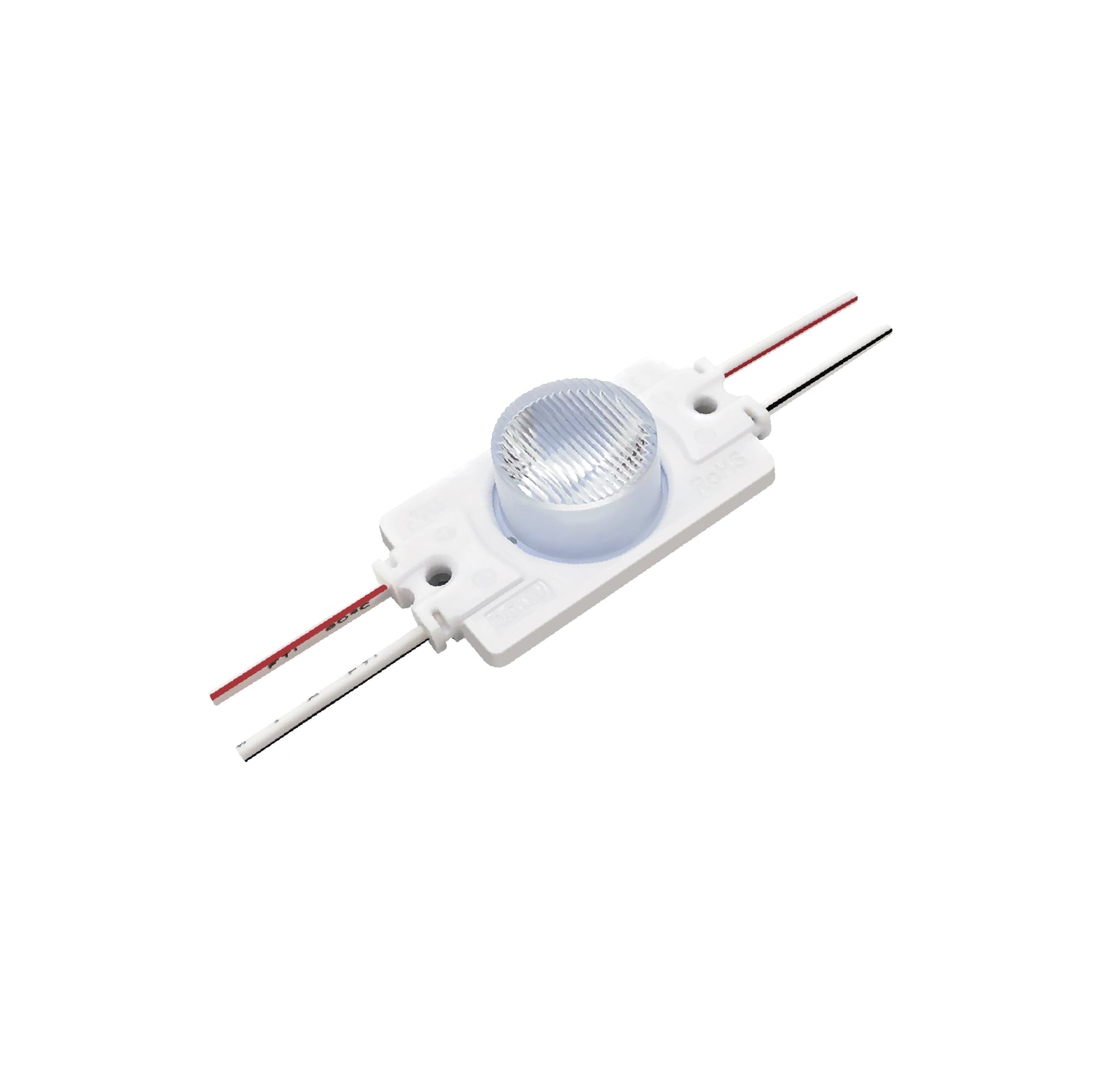

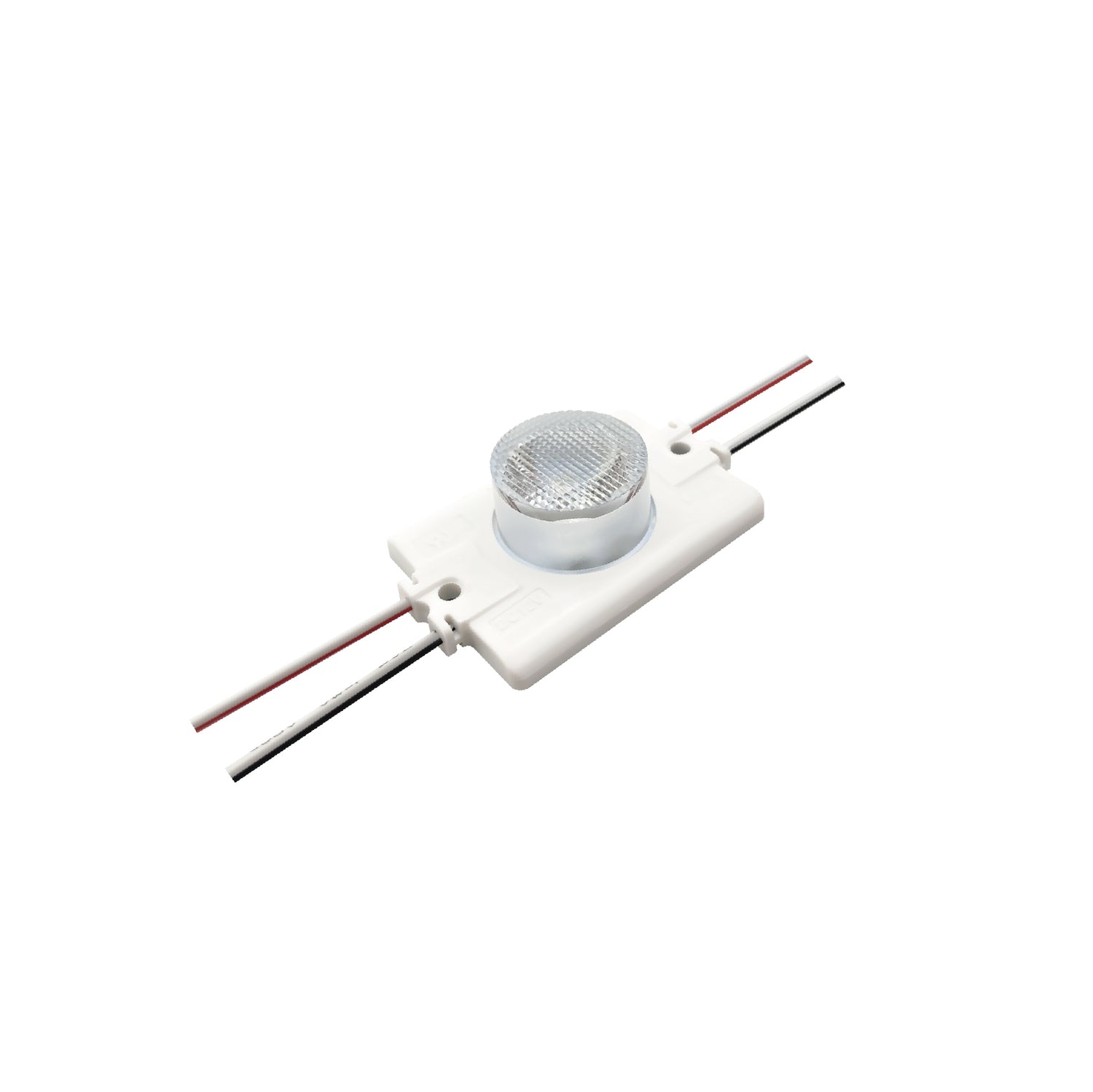

ENVO EdgeFlare LED Module Sidelit - Single LED
ENVO EdgeFlare LED Module Sidelit - Single LED - Cool White 7000K is backordered and will ship as soon as it is back in stock.
Notify me when it's back in stock
Couldn't load pickup availability
Key Specifications
Key Specifications
-
Power Rating2.5 Watt
-
Input Voltage12V DC
-
Max Series10
-
WaterproofIP65
-
Dimensions1.77 in x 1.26 in x 0.58 in
Description
Description
Exceptional Materials: 99.99% pure gold thread paired with a pure copper bracket coated in silver for optimal performance and durability.
Uncompromising Quality: 100% testing during production ensures reliability and precision in every product.
Illuminate with Precision and Versatility
The EdgeFlare LED Modules by ENVO are specifically engineered for double-sided light boxes, offering outstanding illumination in high-traffic environments such as airports, metros, banks, buildings, and shopping malls. With advanced lighting technology and exceptional design, these modules ensure your displays are vibrant and impactful.
Key Features:
- High Output 3535 LED Technology: Equipped with powerful 3535 LEDs, the EdgeFlare modules provide robust and efficient illumination, ensuring your signage is bright and attention-grabbing.
- Constant Current System: Designed with a constant current system to deliver stable and reliable lighting performance, enhancing the longevity and dependability of the LEDs.(Constant Voltage Input)
- Elliptical 15x45° Optic Lens: Features a specialized elliptical lens that optimizes light distribution, providing precise coverage and maximizing the visibility of your displays.
- Convenient String Configuration: Each string includes 10 modules, allowing for flexible installation and adaptability to meet various project requirements.
- Certified Quality and Safety: The EdgeFlare LED Modules are CE, RoHS, UL, TUV, BIS, CB, and LM-80 certified, reflecting ENVO's commitment to maintaining high standards of quality, safety, and environmental responsibility.
Application:
These modules are ideal for double-sided light boxes with depths of 10-20 cm, providing effective light coverage up to 2 meters in various commercial and public settings.
Enhance your signage with the EdgeFlare LED Modules by ENVO, where cutting-edge innovation meets reliability to deliver superior lighting solutions tailored to your specific needs.
File Downloads
File Downloads
::specification::
Specifications
Specifications
-
BrandEnvo
-
SeriesEdgeFlare
-
Power Rating2.5 Watt
-
Rated Current0.21 Ampere
-
Operating Temperature-25°C~60°C
-
Warranty5 Year
-
Length1.77 in
-
Width1.26 in
-
Height0.58 in
-
Weight0.05 lb
