Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

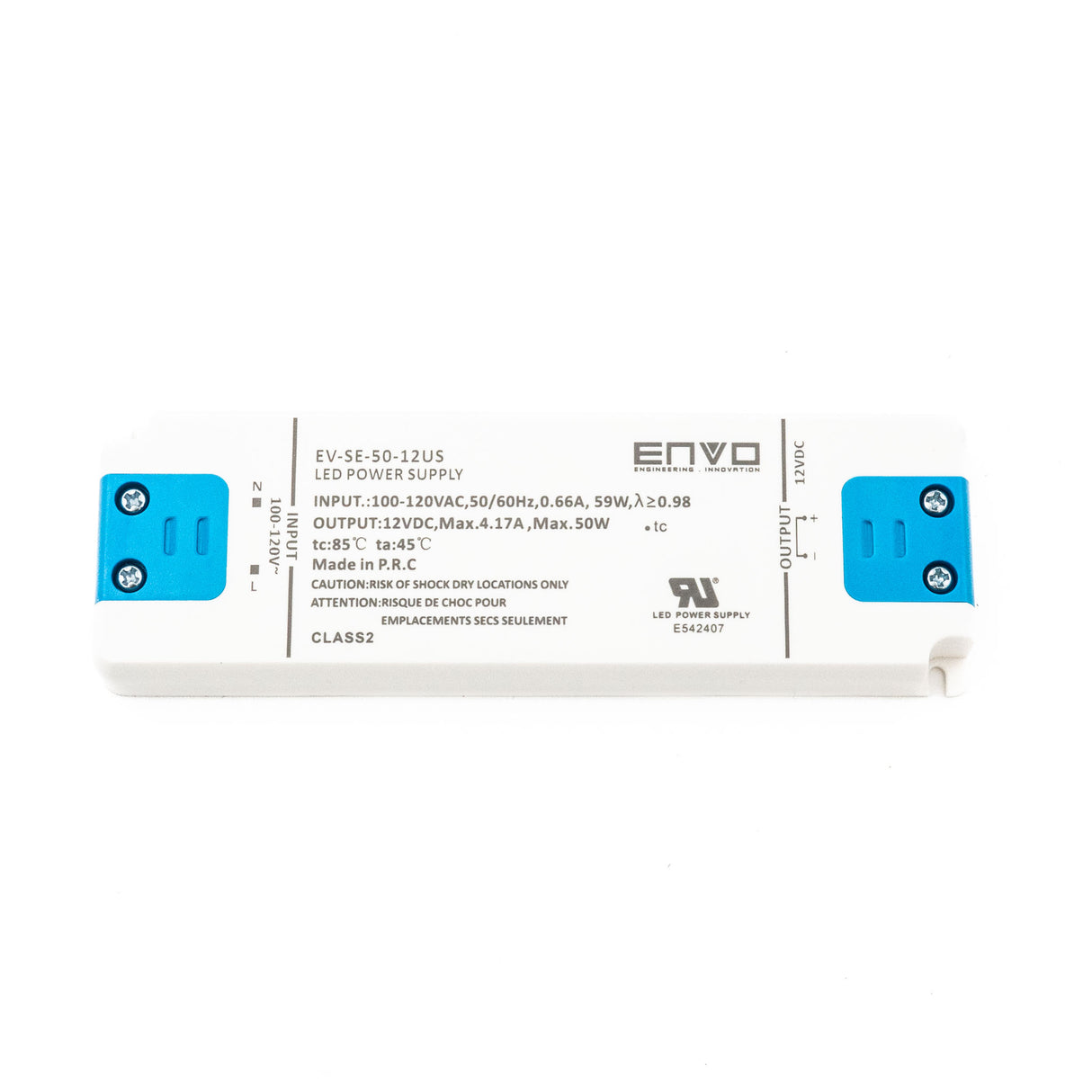

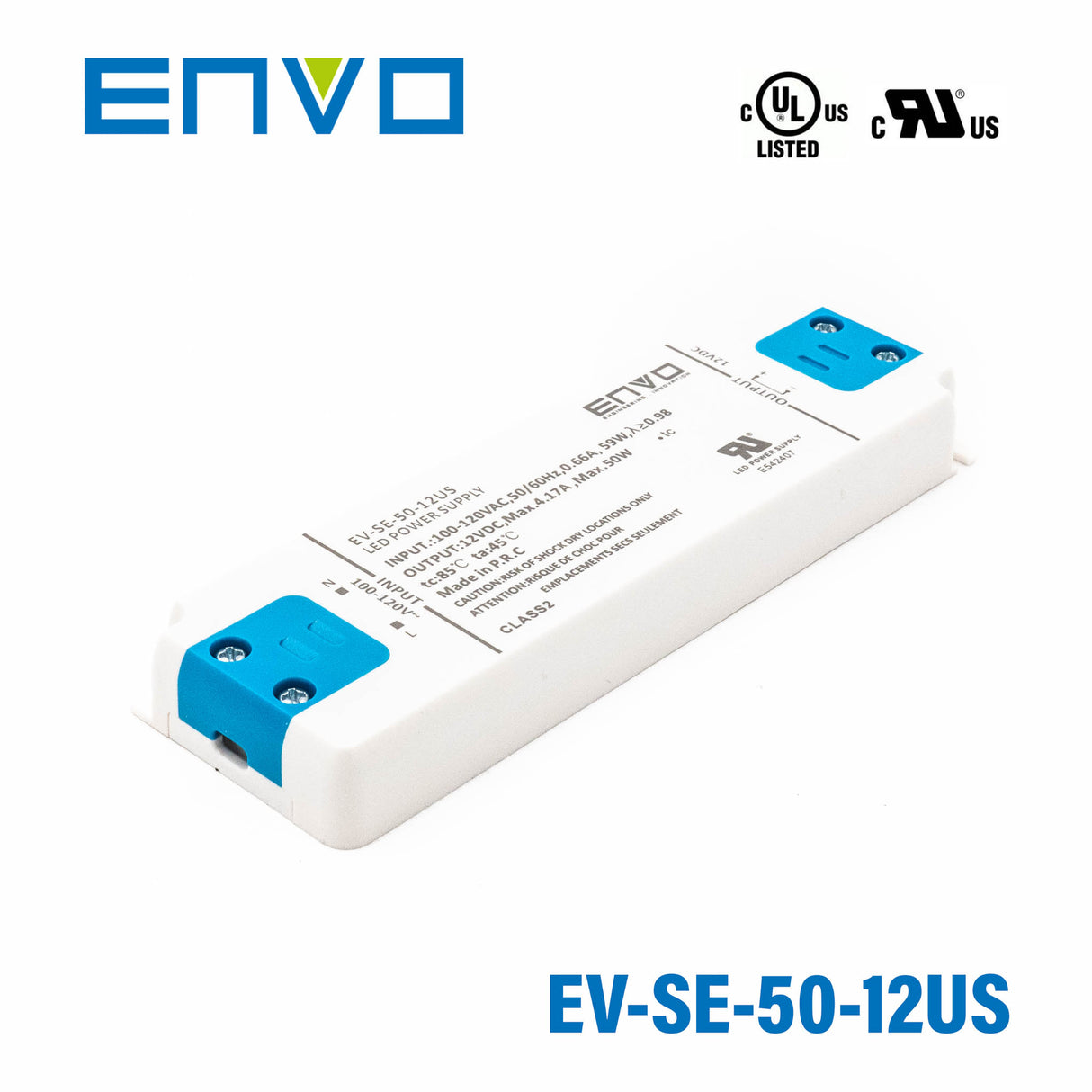

ENVO EV-SE-50-12US LED Driver 50W 12V
90~132VAC US input, ultra thin 0.67"(17mm)
SKU:
EV-SE-50-12US
ENVO EV-SE-50-12US LED Driver 50W 12V is backordered and will ship as soon as it is back in stock.
$12.22 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Couldn't load pickup availability
ENVO EV-SE-50-12US LED Driver 50W 12V
$12.22 USD
Unit price /
Unavailable
Key Specifications
Key Specifications
-
Voltage12 Volt
-
Rated Current4.16 Ampere
-
Dimming ControlNon Dimmable
-
WaterproofIP20
-
Dimensions6.14 in x 0.67 in x 1.97 in
Description
Description
- Output constant voltage
- Input voltage range is 90-132Vac
- Maximum conversion efficiency of 86%
- Working Temperature at -20℃~+45°C
- Short circuit/overload / over voltage protection
- Low standby power consumption
- Compliance with worldwide safety regulations for lighting
- Full protection plastic case
- IP20 for indoor installation
- 5 years warranty
File Downloads
File Downloads
::specification::
Specifications
Specifications
-
BrandEnvo
-
SeriesENVO SE Series
-
Power Rating50 Watt
-
Output Voltage12 Volt
-
Rated Current4.16 Ampere
-
Input Voltage100V~120V
-
Standards MetcUL,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~45°C
-
Warranty5 Year
-
Length6.14 in
-
Width0.67 in
-
Height1.97 in
-
Weight0.32 lb
