Over 15 years experience of providing support of LED Signage industry

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

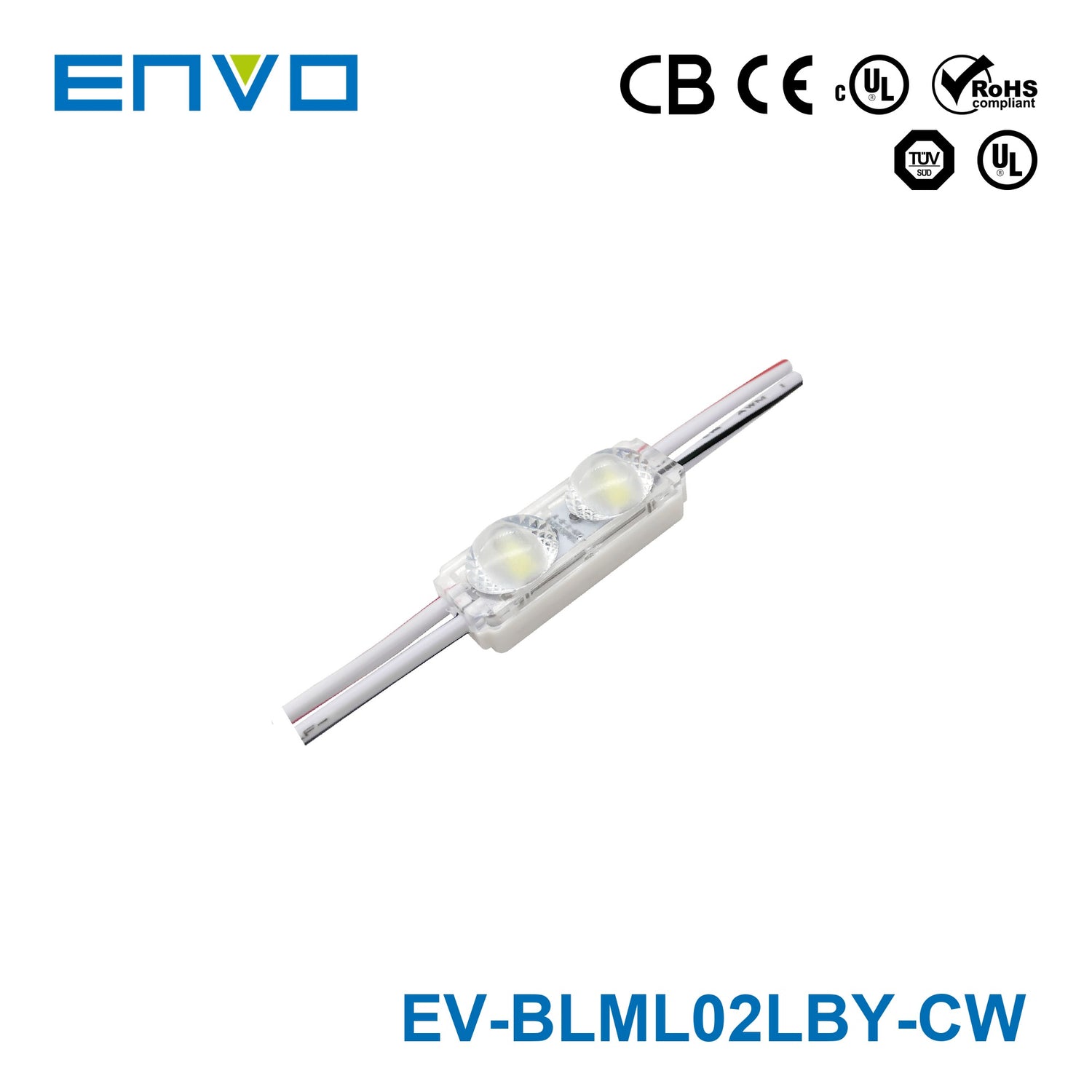

ENVO MiniLux LED Module Backlit - Duo LED

12V 0.48W IP66
SKU:
EV-BLML02LBY-CW

LED Colour
$0.76 USD
Shipping calculated at checkout.
|

minimum 40, only sold in multiple of 40

Key Specifications

  • Power Rating
    0.48 Watt
  • Input Voltage
    12V DC
  • Max Series
    40
  • Waterproof
    IP66
  • Dimensions
    1.02 in x 0.35 in x 0.35 in

Description

Exceptional Materials: 99.99% pure gold thread paired with a pure copper bracket coated in silver for optimal performance and durability.

Uncompromising Quality: 100% testing during production ensures reliability and precision in every product.


Compact and Brilliant Illumination

The MiniLux LED Modules by ENVO are designed to deliver efficient and precise lighting solutions for shallow depth applications such as illuminated letters and light boxes. Ideal for tight spaces, these modules ensure your signage is vibrant and clearly visible.

Key Features:

  • Powered by High Output 2835 LED: Achieve excellent brightness and efficiency with advanced 2835 LEDs, making your signage stand out.
  • Constant Voltage System: Provides stable lighting performance, ensuring consistent illumination across your project.
  • Diamondback 180°x140° Optic Lens: Features a wide-angle lens that offers expansive and uniform light distribution, maximizing coverage and minimizing shadows.
  • Efficient String Configuration: Each string contains 40 modules, designed for easy installation and adaptability to suit various project requirements.

Application:

The MiniLux LED Modules are ideal for illuminated letters and light boxes with depths ranging from 3-8 cm, providing effective lighting solutions in compact spaces.

Enhance your signage with the MiniLux LED Modules by ENVO, where compact design meets powerful performance to deliver superior lighting solutions tailored to your specific needs.

File Downloads

::specification::

Specifications

  • Brand
    Envo
  • Series
    MiniLux
  • Power Rating
    0.48 Watt
  • Rated Current
    0.04 Ampere
  • Operating Temperature
    -25°C~60°C
  • Warranty
    5 Year
  • Length
    1.02 in
  • Width
    0.35 in
  • Height
    0.35 in
  • Weight
    0.01 lb
