Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

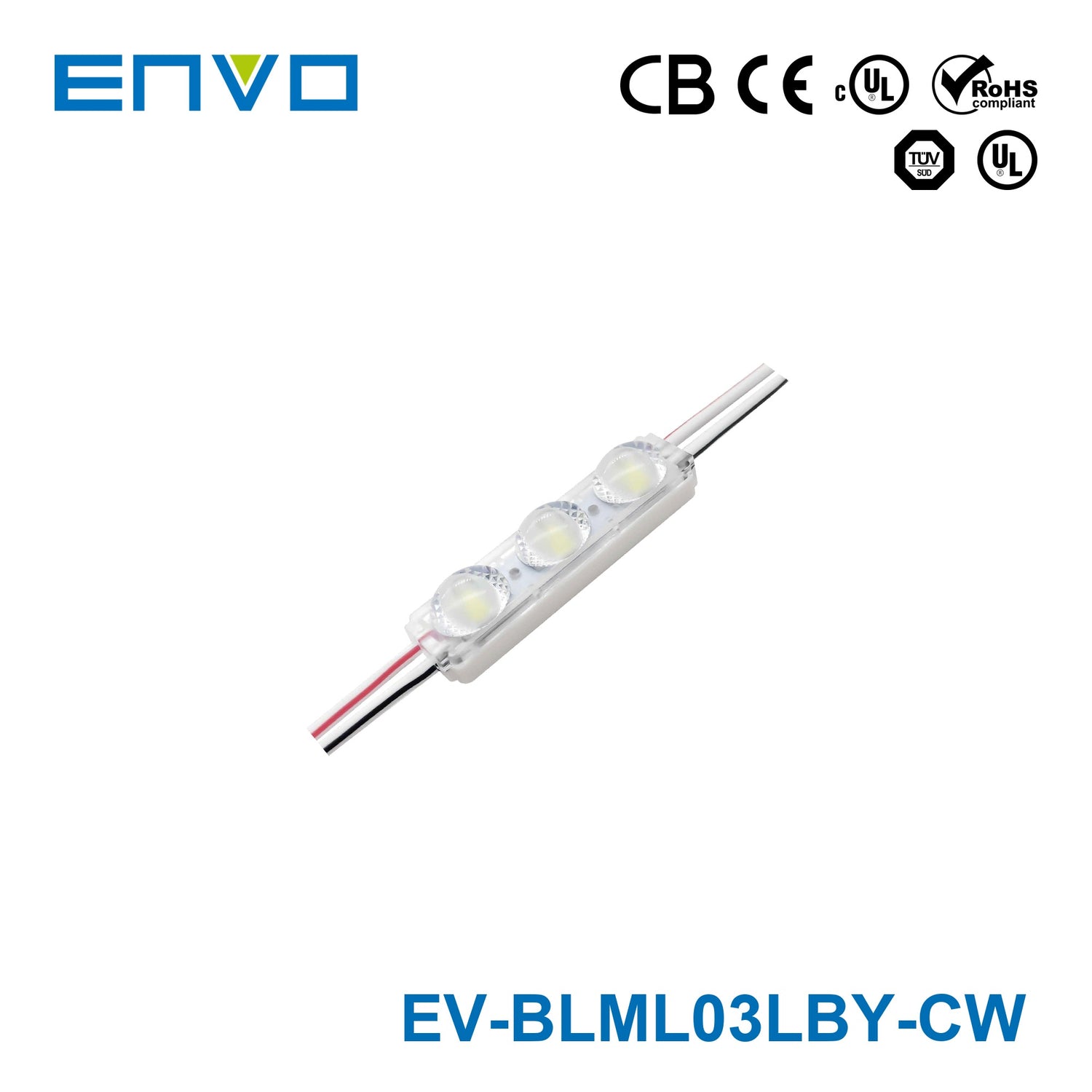

ENVO MiniLux LED Module Backlit - Triple LED

Name: ENVO MiniLux LED Module Backlit - Triple LED
Brand: Envo
SKU: EV-BLML03LBY-CW
Price: 0.97 USD
Availability: InStock

12V 0.72W IP66

SKU:

EV-BLML03LBY-CW

LED Colour

Cool White 7000K Natural White 4000K Warm White 3000K

Product variants

ENVO MiniLux LED Module Backlit - Triple LED - Cool White 7000K is backordered and will ship as soon as it is back in stock.

$0.97 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Key Specifications

Power Rating

0.72 Watt
Input Voltage

12V DC
Max Series

40
Waterproof

IP66
Dimensions

1.5 in x 0.35 in x 0.35 in

Description

Exceptional Materials: 99.99% pure gold thread paired with a pure copper bracket coated in silver for optimal performance and durability.

Uncompromising Quality: 100% testing during production ensures reliability and precision in every product.

Compact and Brilliant Illumination

The MiniLux LED Modules by ENVO are designed to deliver efficient and precise lighting solutions for shallow depth applications such as illuminated letters and light boxes. Ideal for tight spaces, these modules ensure your signage is vibrant and clearly visible.

Key Features:

Powered by High Output 2835 LED: Achieve excellent brightness and efficiency with advanced 2835 LEDs, making your signage stand out.
Constant Voltage System: Provides stable lighting performance, ensuring consistent illumination across your project.
Diamondback 180°x140° Optic Lens: Features a wide-angle lens that offers expansive and uniform light distribution, maximizing coverage and minimizing shadows.
Efficient String Configuration: Each string contains 40 modules, designed for easy installation and adaptability to suit various project requirements.

Application:

The MiniLux LED Modules are ideal for illuminated letters and light boxes with depths ranging from 3-8 cm, providing effective lighting solutions in compact spaces.

Enhance your signage with the MiniLux LED Modules by ENVO, where compact design meets powerful performance to deliver superior lighting solutions tailored to your specific needs.

File Downloads

::specification::

Specifications

Brand

Envo
Series

MiniLux
Power Rating

0.72 Watt
Rated Current

0.06 Ampere
Operating Temperature

-25°C~60°C
Warranty

5 Year
Length

1.5 in
Width

0.35 in
Height

0.35 in
Weight

0.01 lb
