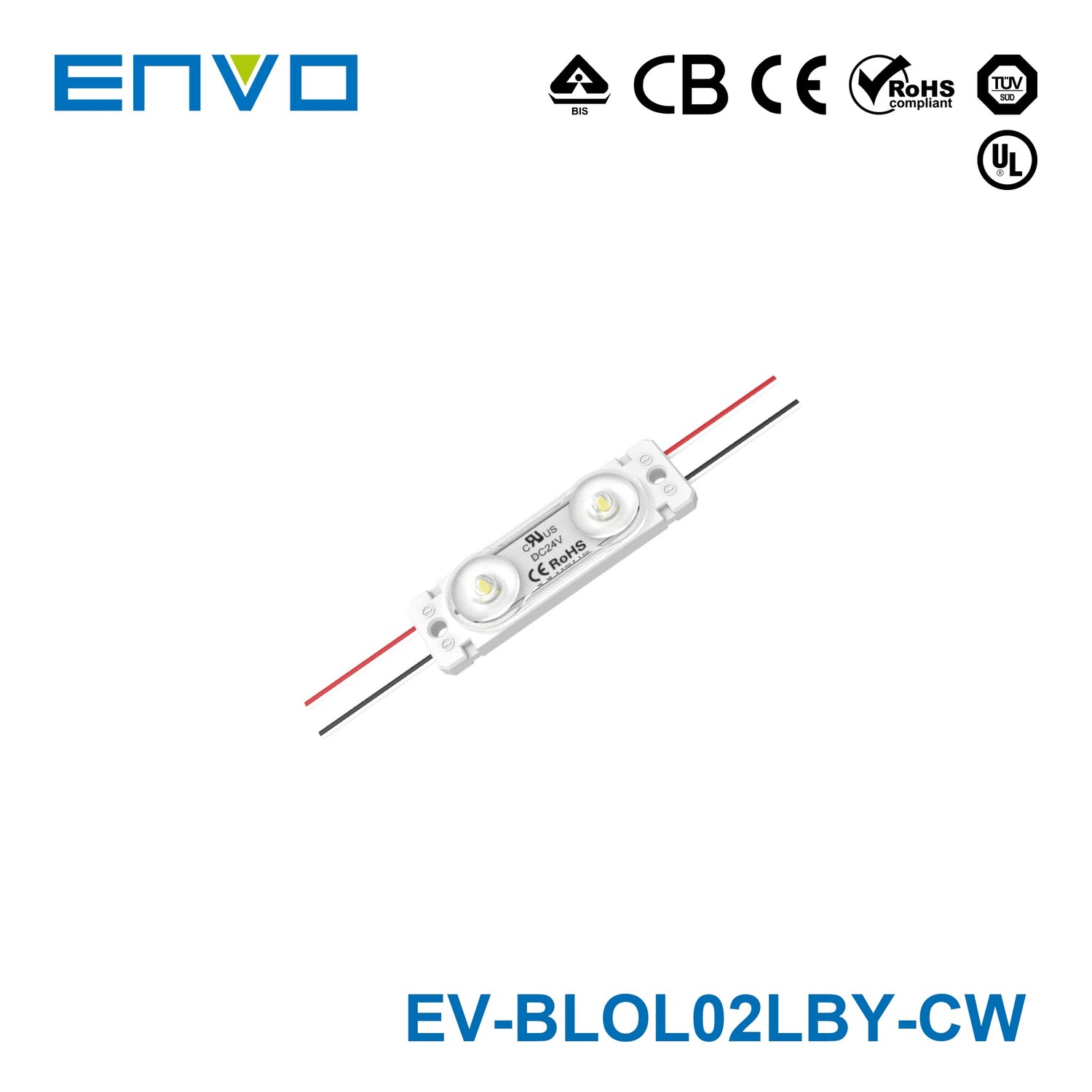

ENVO OptiLume LED Module Backlit - Double LED

Name: ENVO OptiLume LED Module Backlit - Double LED
Brand: Envo
SKU: EV-BLOL02LBY-CW
Price: 1.24 USD
Availability: InStock

24V 0.66W IP66

SKU:

EV-BLOL02LBY-CW

LED Colour

Cool White 6500K Natural White 4000K Warm White 3000K

Product variants

$1.24 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Key Specifications

Power Rating

0.66 Watt
Input Voltage

24V DC
Max Series

50
Waterproof

IP66
Dimensions

2.2 in x 0.42 in x 0.42 in

Description

Exceptional Materials: 99.99% pure gold thread paired with a pure copper bracket coated in silver for optimal performance and durability.

Uncompromising Quality: 100% testing during production ensures reliability and precision in every product.

Illuminate with Precision and Efficiency

The OptiLume LED Module by ENVO is the ultimate solution for illuminating letters and light boxes, designed specifically for environments like airports, metros, banks, buildings, and shopping malls. This advanced module combines superior technology and flexible functionality to ensure your displays are both efficient and eye-catching.

Key Features:

High Output 2835 LEDs: Equipped with high-powered 2835 LEDs, the OptiLume LED Module delivers exceptional brightness and performance, with a light efficacy exceeding 150LM/W.
Versatile Voltage Options: Offers constant voltage operation with optional constant current (CC) settings, and features a no-polarity limit input for both CC and CV, ensuring seamless integration into various lighting setups.
Dimmable Functionality: Easily adjust lighting intensity to suit your specific application needs, providing customizable solutions for different environments.
Wide Beam Optics: The integrated transparent 170° optic lens provides broad and even light distribution, ensuring comprehensive illumination for your signage.
Flexible Installation: Available in configurations of 50 or 20 pieces per string, allowing for adaptable installation across projects of various sizes.
Certified Quality: Backed by CE, ROHS, UL, TUV, BIS, CB, and LM-80 certifications, ensuring adherence to high standards of quality and safety.

Application:

The OptiLume LED Module is ideal for illuminated letters and light boxes with depths ranging from 6-20 cm, designed to deliver vibrant lighting in a variety of commercial and public settings.

Transform your signage with the OptiLume LED Module by ENVO, where innovation and reliability combine to provide outstanding lighting solutions tailored to your needs.

File Downloads

::specification::

Specifications

Brand

Envo
Series

OptiLume
Power Rating

0.66 Watt
Rated Current

0.03 Ampere
Operating Temperature

-25°C~60°C
Warranty

5 Year
Length

2.2 in
Width

0.42 in
Height

0.42 in
Weight

0.03 lb
